20x20mm Skystars F405 Mini HD2 Flight Controller and KM35 35A 3-6S ESC Stack

$99.00

supports M2 and M3 screws both use appropriate Rubber Gummies supplied as per your need.

What makes this FC different from others?

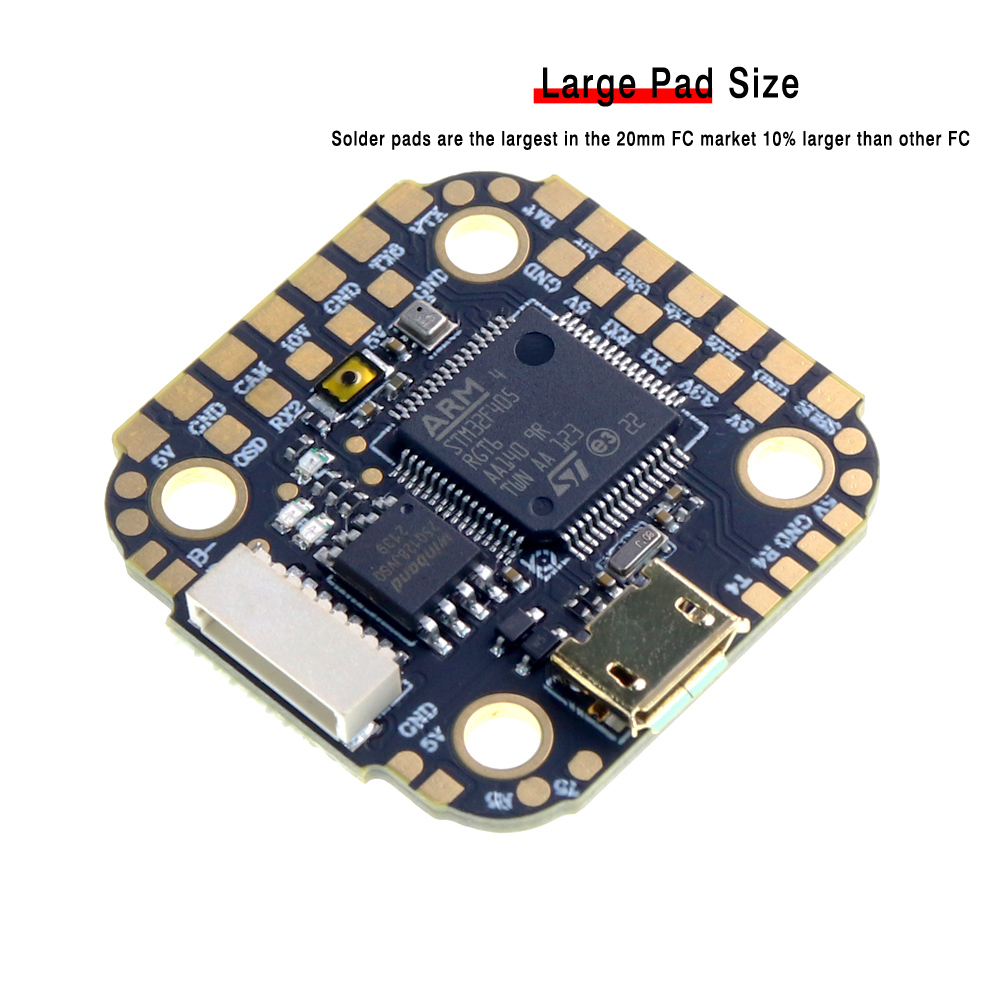

1. Solder pads are the largest in size compared to other FC in market.
2. Proper solder pad spacing to avoid solder bridge and facilitate easy soldering.

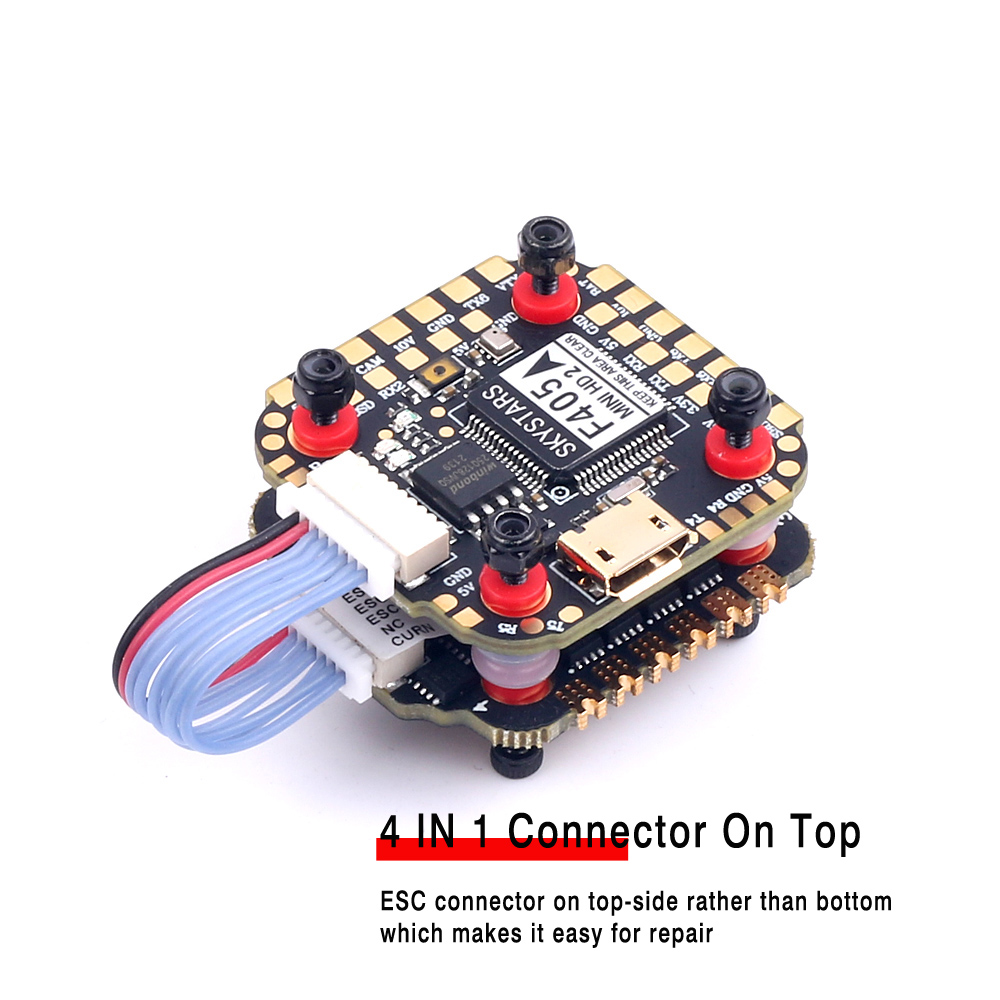

3. ESC connector on top-side rather than bottom which makes it easy for repair.
4. Hybrid design allows both M3 and M2 screw.
5. TVS Diode for Reverse Polarity Protection and Voltage Spike Suppression.
6. Powerful BEC to supply all your electronics.
7. Pads arrangement are executed in such a way that when you twist the wires of the camera VTX and RX you don’t get any wire overlapping this gives you a uniform twist and clean look.

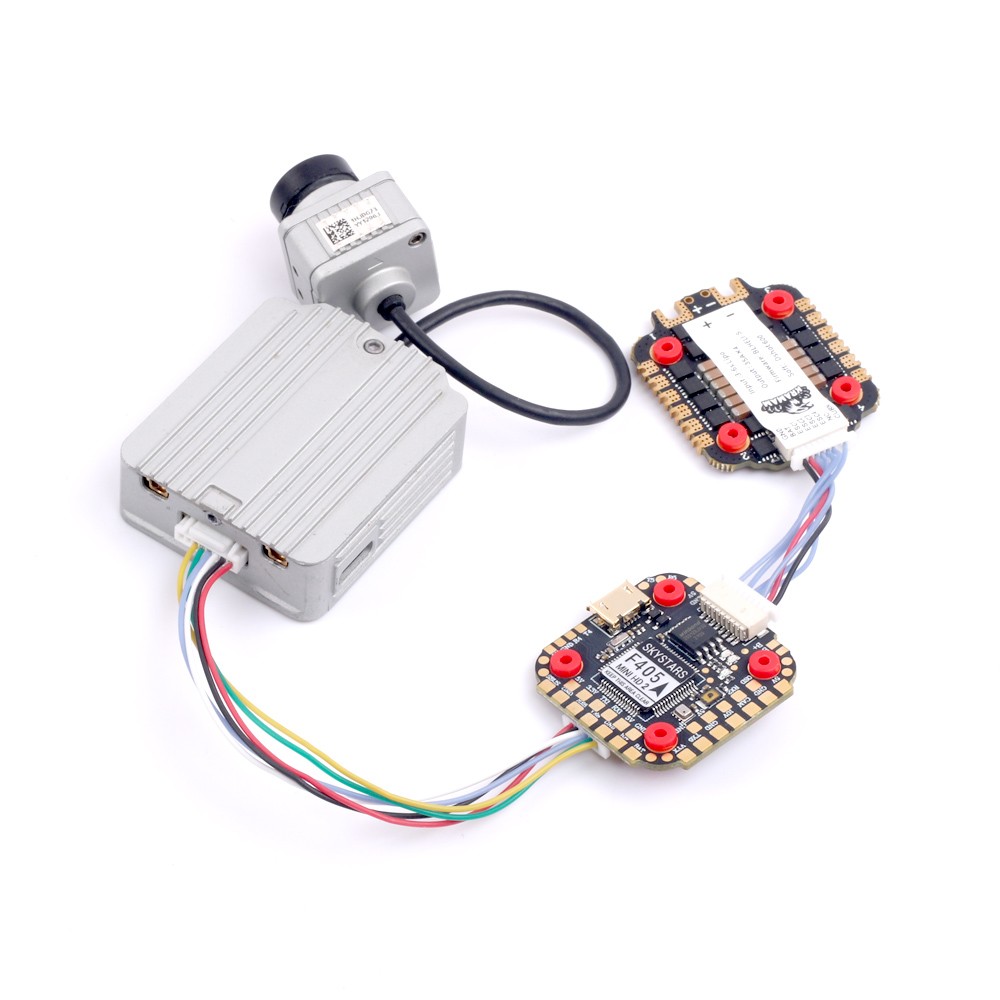

8. DJI connector on the bottom side.
9. Budget-friendly price ( We understand the situation of chip shortage and rising prices of FC )
10. Two stages of Quality check to reduce any faulty electronic.
11. No power lines near Gyro to avoid any EMI interference.
12. Comes ready with I2C support and INAV.

Categories: ,

20x20mm Skystars F405 Mini HD2 Flight Controller and KM35 35A 3-6S ESC Stack with Barometer for Betaflight and INAV RC Drone FPV Racing

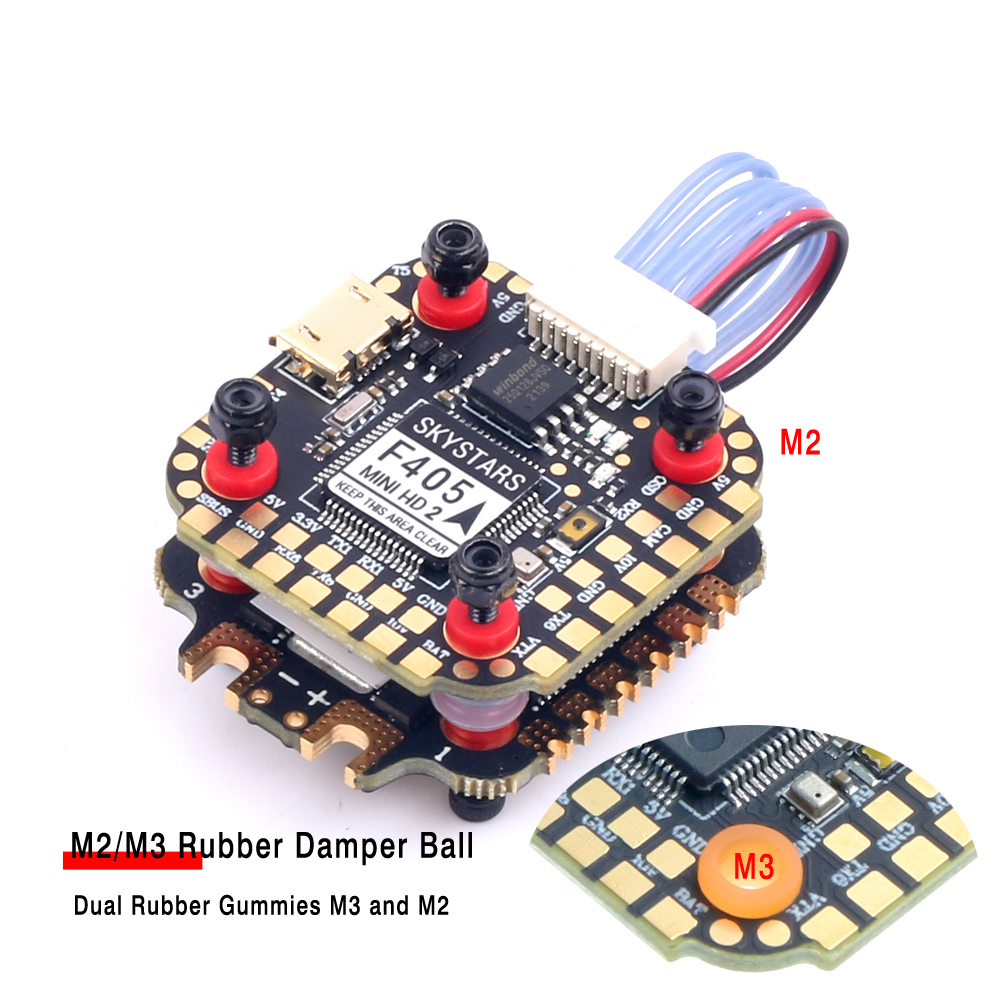

Note – This stack supports M2 and M3 screws both use appropriate Rubber Gummies supplied as per your need.

Orange Rubber – M3
Red Rubber – M2

Specifications:
Item name: F405Mini HD2 Betaflight Flight Controller
Input voltage: 3-6S LiPo(11.1V~22.2V)
MCU:STM32F405RGT6 168MHz
IMU: MPU6000 (SPI)
OSD: Betaflight OSD &DJI HD OSD (UART6)
6 hardware UARTS (UART1,2,3,4,5,6,)
Receiver:TBS/PPM/SBUS/IBUS/DSM
Barometer: YES
Buzzer Pad: YES
CURR Pad: YES
BEC 5V 2A & 10V 2A(Max 3A)
Blackbox: 16MB
Firmware: Betaflight /INAV SKYSTARS F405HD
Mounting Holes: 20mm/M2 or M3
Weight: 4.8g

Item name: KM35 35A 4IN1 ESC
Input voltage: 3-6S LiPo
Con.Current: 35A
Peak Current:45A≥ 10S
Firmware: BLHeli_S
Support : Dshot 300/600
Mounting holes : 20X20 mm/M3
BEC: No
Product size: 31*36*3.9mm
Weight: 7.8g

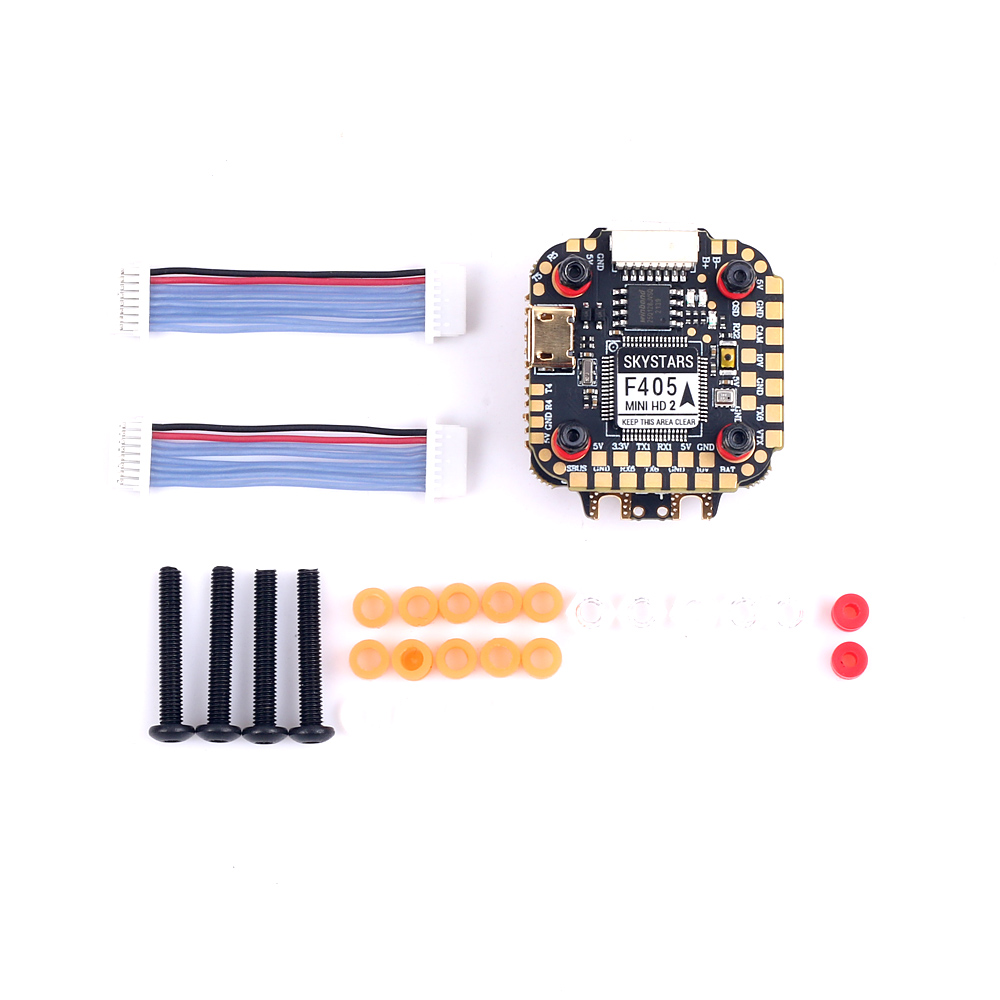

Includes
1x F405Mini HD2 Betaflight Flight Controller
1x Skystars KM35A 3-6S 20×20 4in1 ESC
