20x20mm Skystars F411 Mini HD Flight Controller and KO40 4IN1 40A ESC

$99.00

Solder pads are the largest.
TVS Diode for Reverse Polarity Protection.
DJI connector on the bottom side, power supply by BAT.
Two stages of Quality check to reduce any faulty electronic.

Categories: ,

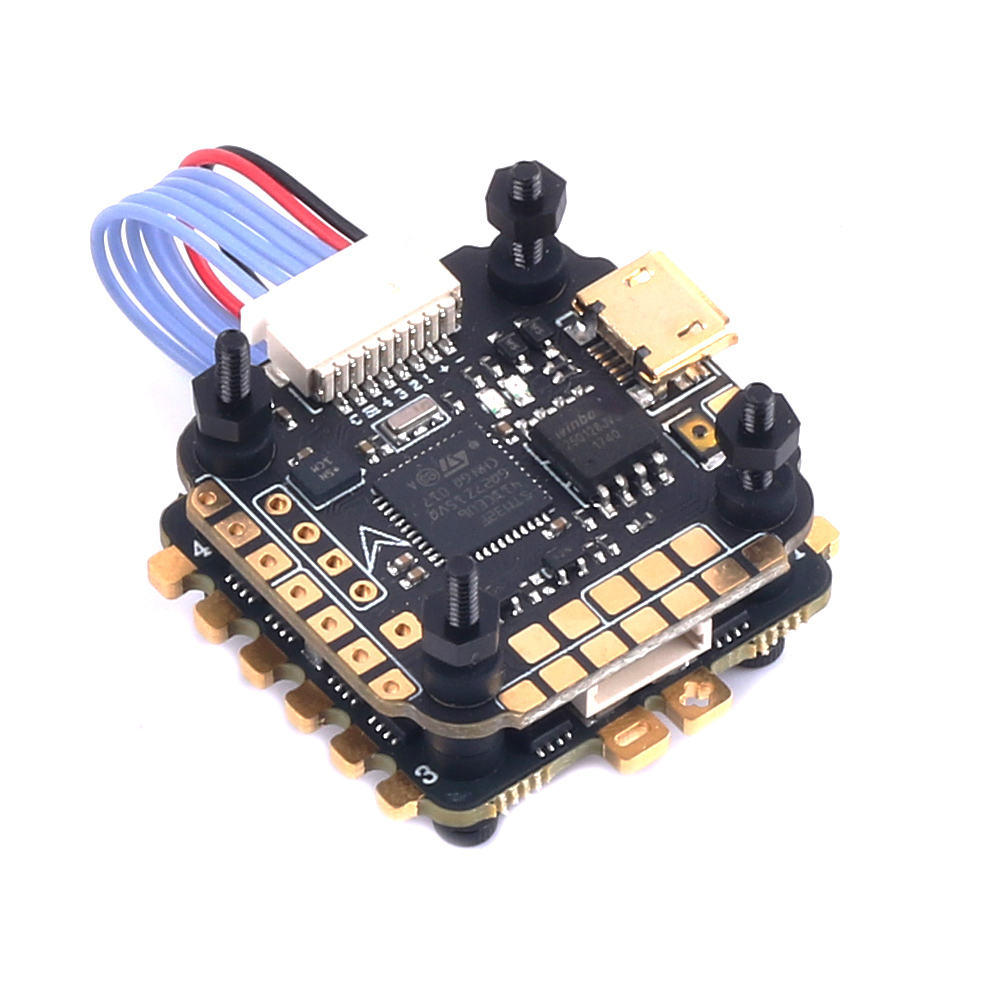

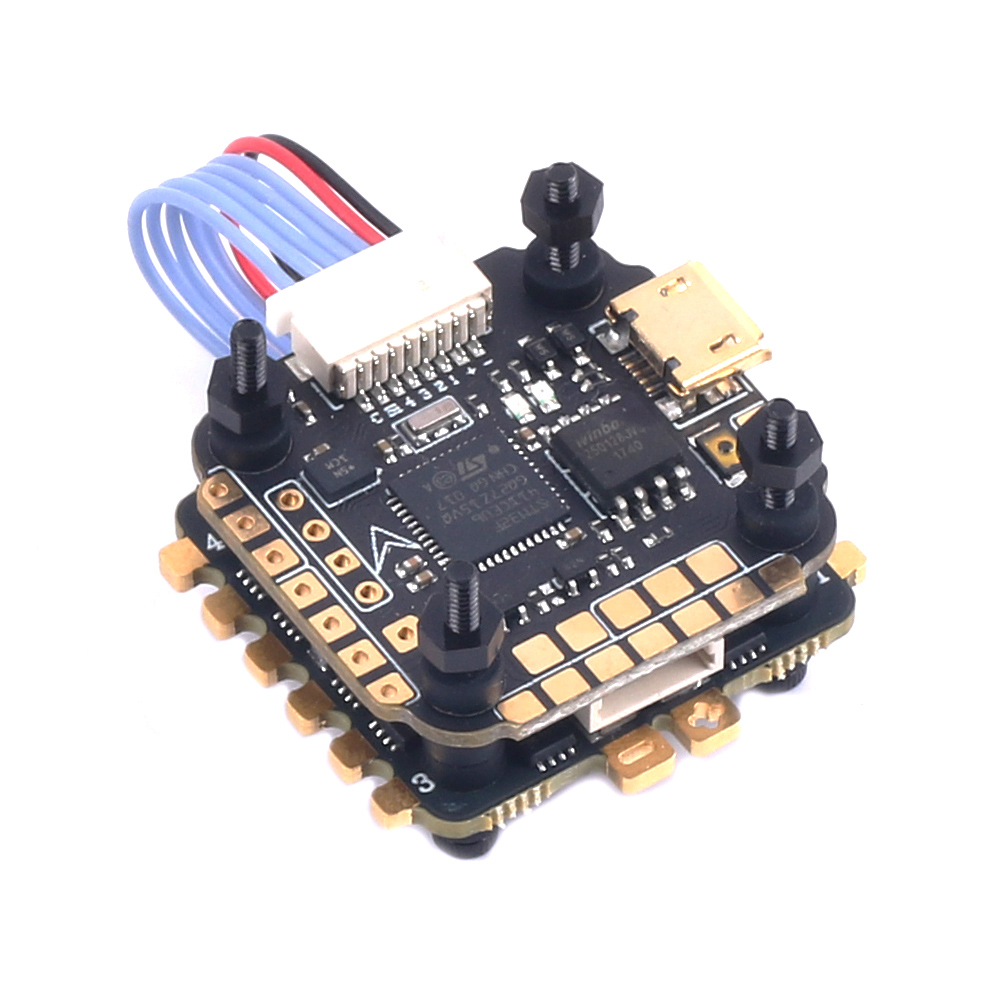

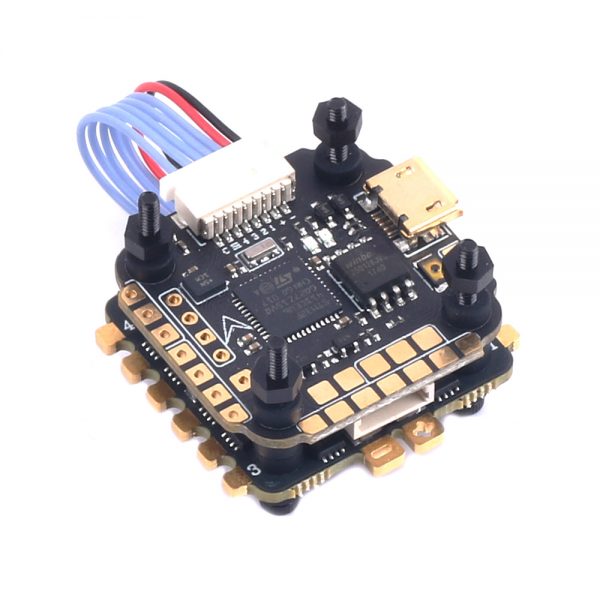

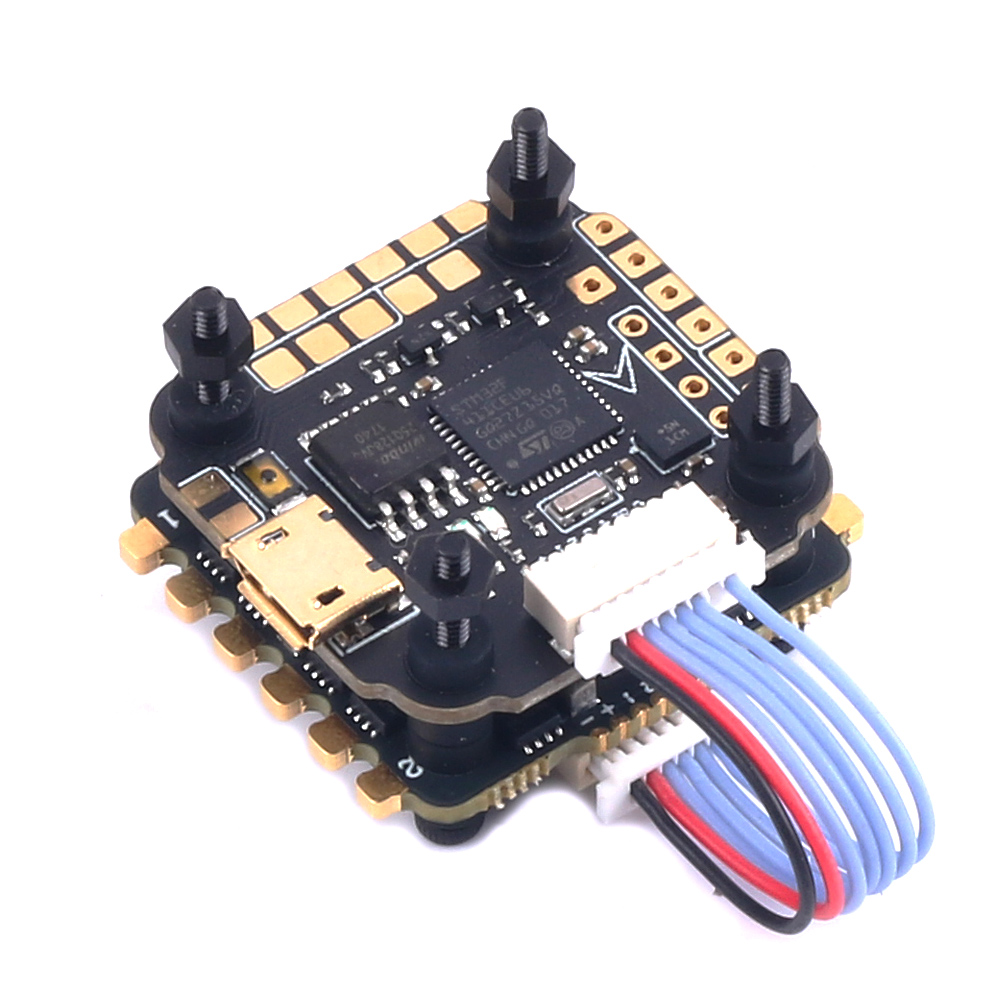

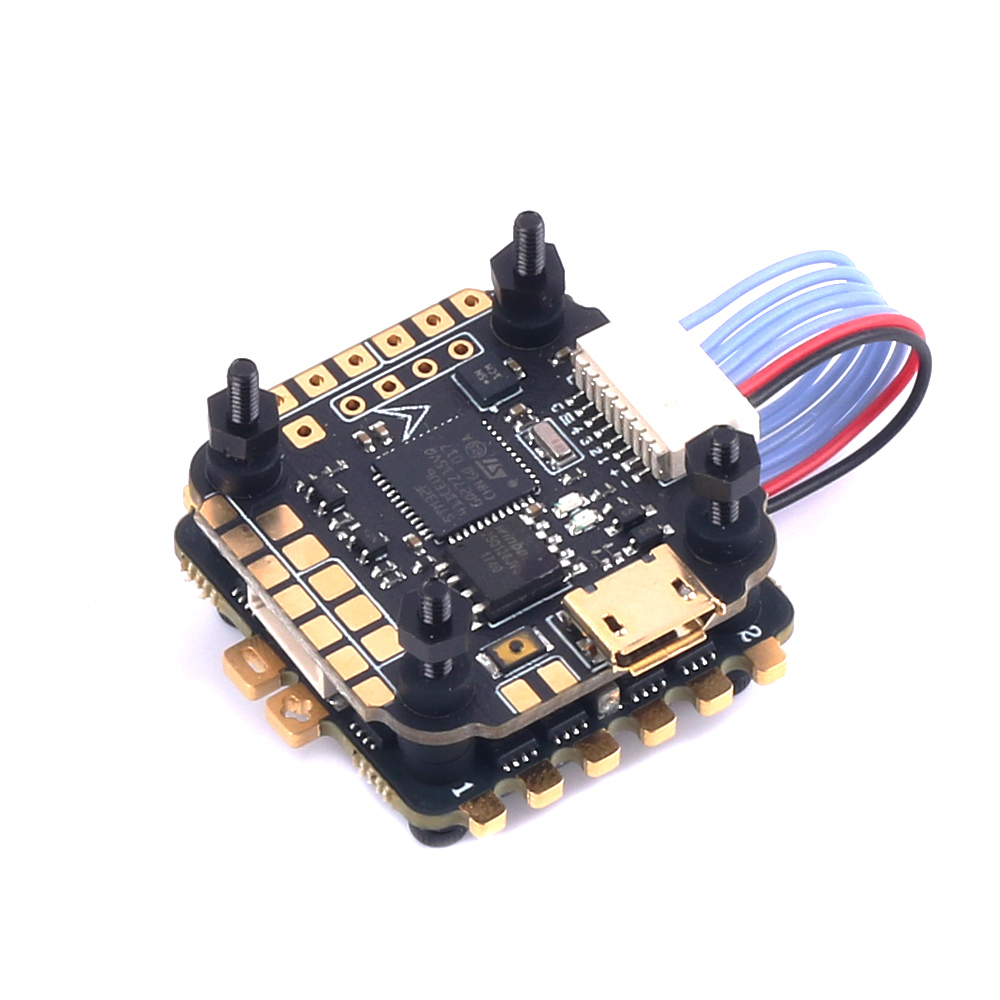

20x20mm Skystars F411 Mini HD Flight Controller and Ko40 40A 3-6S ESC Stack for Betaflight RC Drone FPV Racing

What makes this FC different from others?

1. Solder pads are the largest in size compared to other mini FC in market.
2. Proper solder pad spacing to avoid solder bridge and facilitate easy soldering.
3. TVS Diode for Reverse Polarity Protection and Voltage Spike Suppression.
4. Powerful BEC to supply all your electronics.
5. Pads arrangement are executed in such a way that when you twist the wires of the camera VTX and RX you don’t get any wire overlapping this gives you a uniform twist and clean look.
6. DJI connector on the bottom side, power supply by BAT.
7. Two stages of Quality check to reduce any faulty electronic.
8. No power lines near Gyro to avoid any EMI interference.

Specifications:

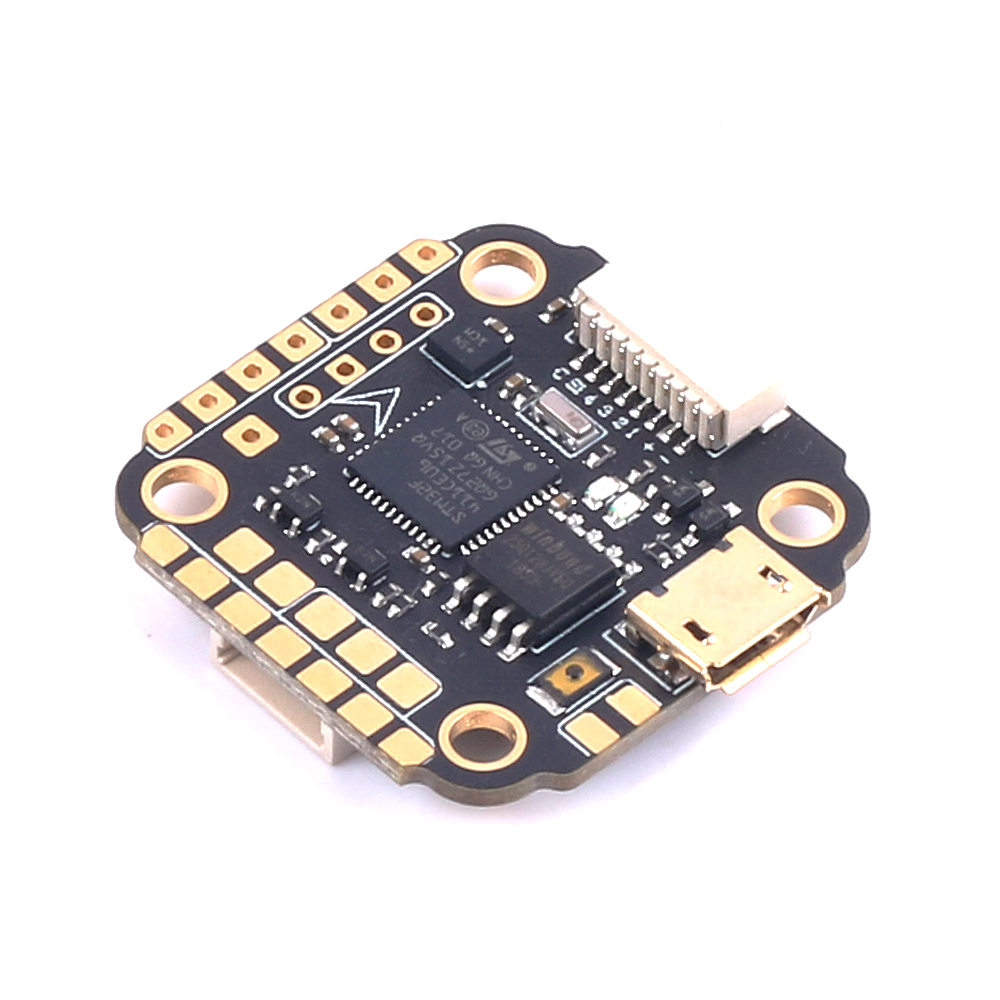

Item name: F411Mini HD Betaflight Flight Controller
Input voltage: 3-6S LiPo(11.1V~22.2V)
MCU:STM32F411
IMU: BMI270 (SPI)
OSD: AT7456E
2 hardware UARTS (UART1,2)
1 software UART3
Receiver:CRSF/SBUS/IBUS/DSM
Barometer: NO
Buzzer Pad: YES
CURR Pad: YES
BEC 5V 2A
Blackbox: 16MB
Firmware: Betaflight SKYSTARS F411
Mounting Holes: 20mm/M2
Weight: 4.3g

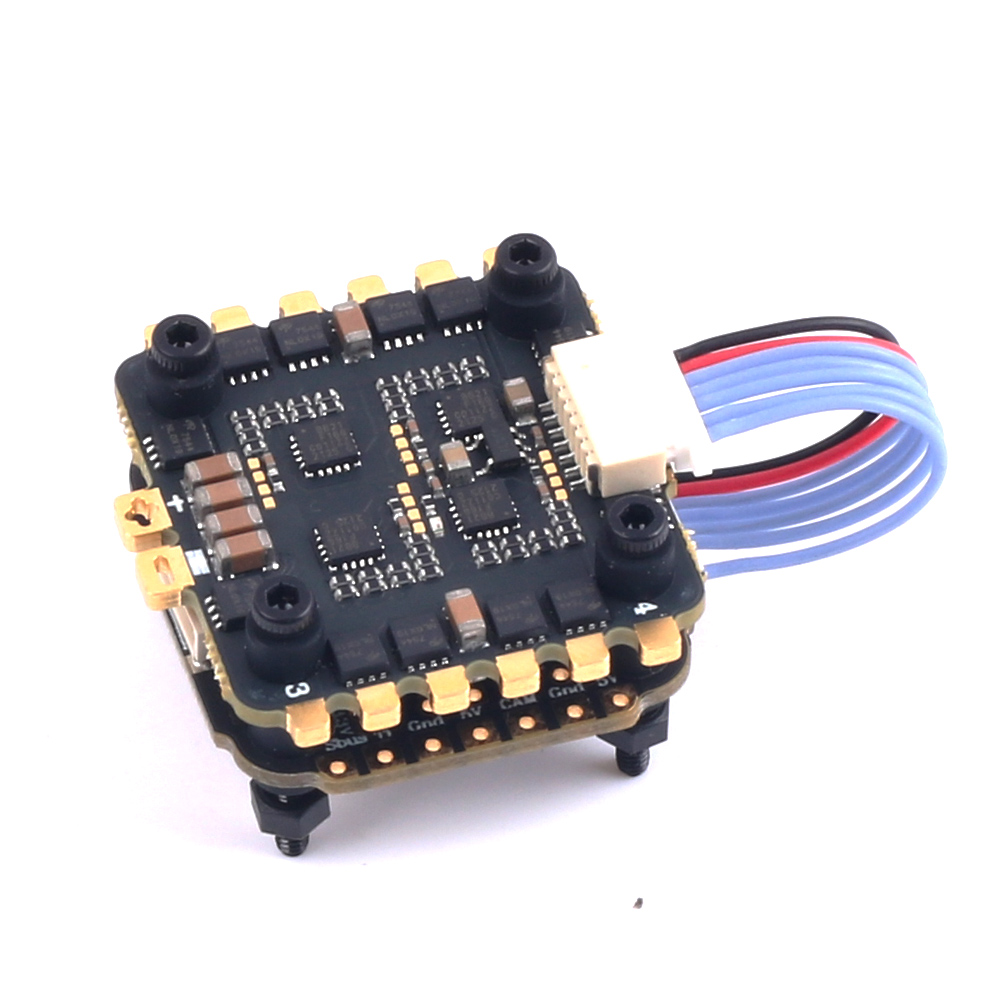

Item name: KO40 40A 4IN1 ESC
Input voltage: 3-6S LiPo
Con.Current: 40A
Peak Current:45A≥ 10S
Firmware: BLHeli_S
Support : Dshot 300/600
Mounting holes : 20X20 mm/M2
BEC: No
Product size: 31*30*6.9mm
Weight: 5.4g
Includes
1x F411Mini HD Betaflight Flight Controller
1x Skystars KO40A 3-6S 20×20 4in1 ESC
