Support 128K, Dshot1200,600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
Power supply voltage: 3-6S (12-26V)
Continuous working current: 60A
No built-in 5V BEC output
Firmware: BLHELI 32 ESC
Screw hole spacing: 30.5*30.5MM
1. Excellent over-current capability.Designed for multi-axis UAV traversing machines.
By adopt the best PCB material and PCB production process. Such as application of high TG materials , 3oz copper PCB & 2μm gold deposition process on PCB. Together with 6-layer layout design of board,compared with others common 4 layer,It can withstand bigger current.
2. Extreme stably support 6S LiPo battery
By use of 24 pcs of TOP Qualitly standard 5×6 Mosfet & imported from USA electronic materials. Plus advanced lead-free SMT Processing technology.It make ESC can fully support 6s battery and get a better performance.
3. Better control performance
Flashed with the latest Blheli_32 firmware in factory, support telemetry functions (including voltage ,RPMS & current )
The ESC uses 32-bit ARM Cortex MCU 32F051 48MHZ processor, 2048-level throttle resolution, unique algorithm control, and strong anti-interference ability.
You can upgrade the firmware online or change the configuration parameters through the signal line.
The ESC comes with a current detection module, which can cooperate with the flight control to detect the current value.
The ESC adopts an adaptive control system and is compatible with most motors on the market.
4.EMI Shell provides stronger anti-interference capability.

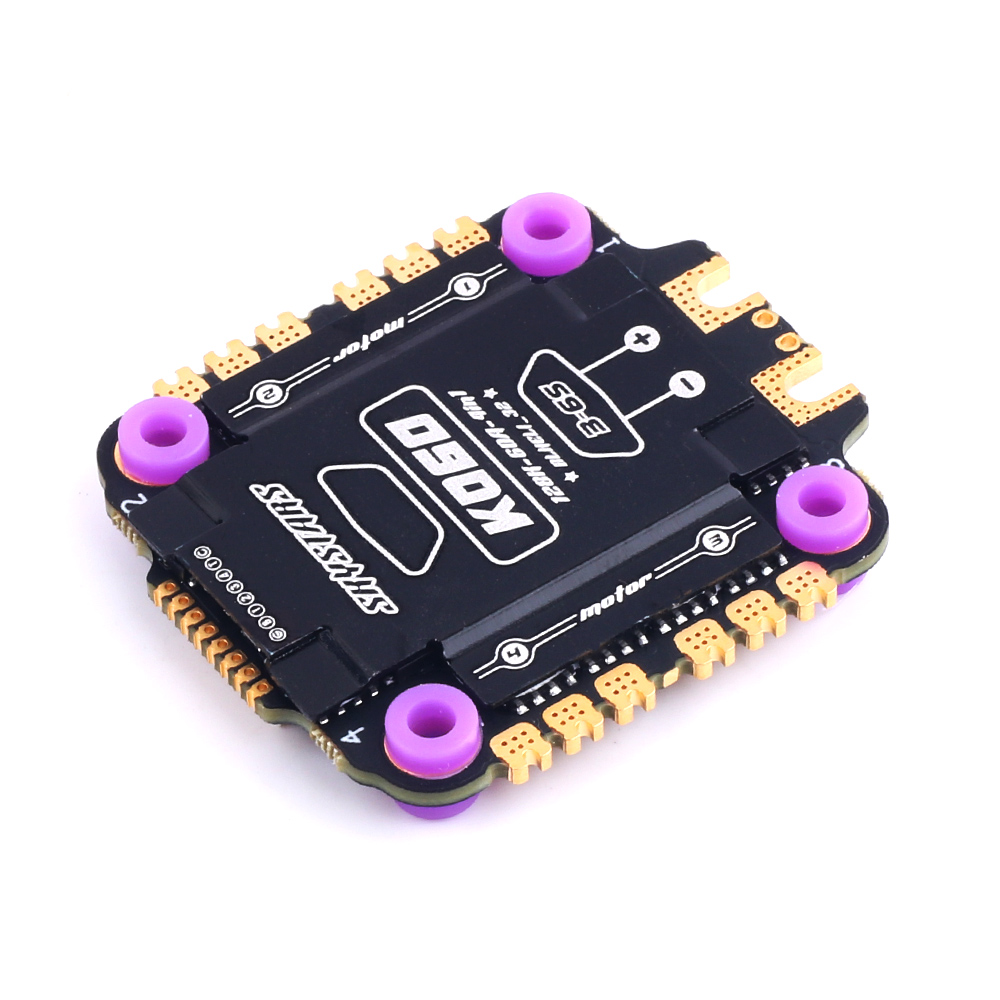

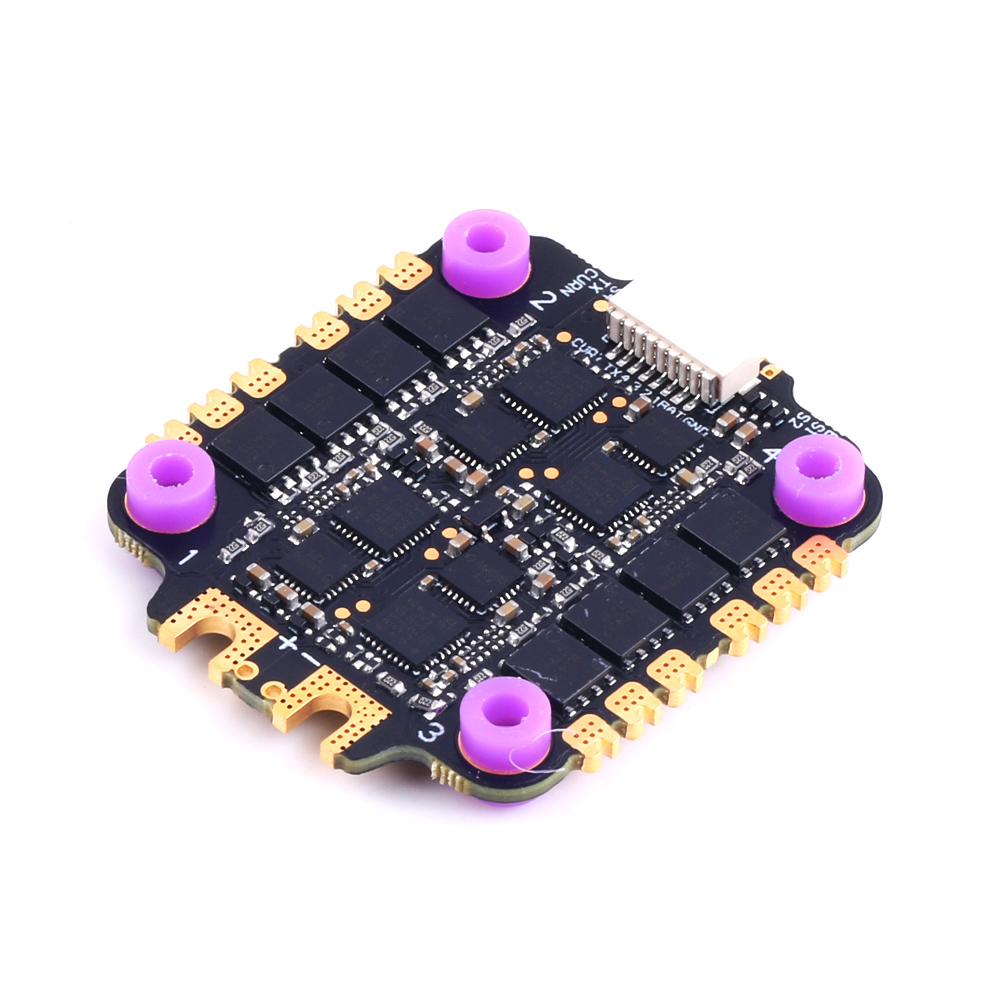

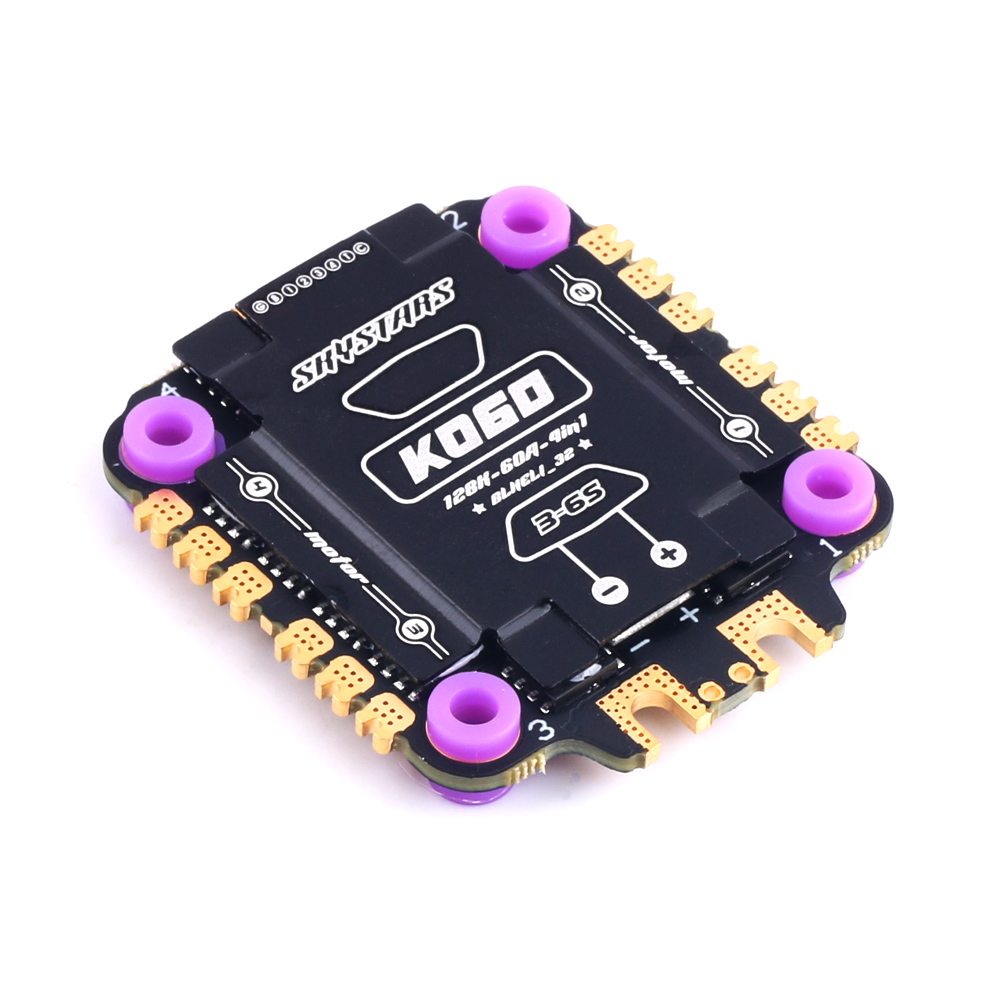

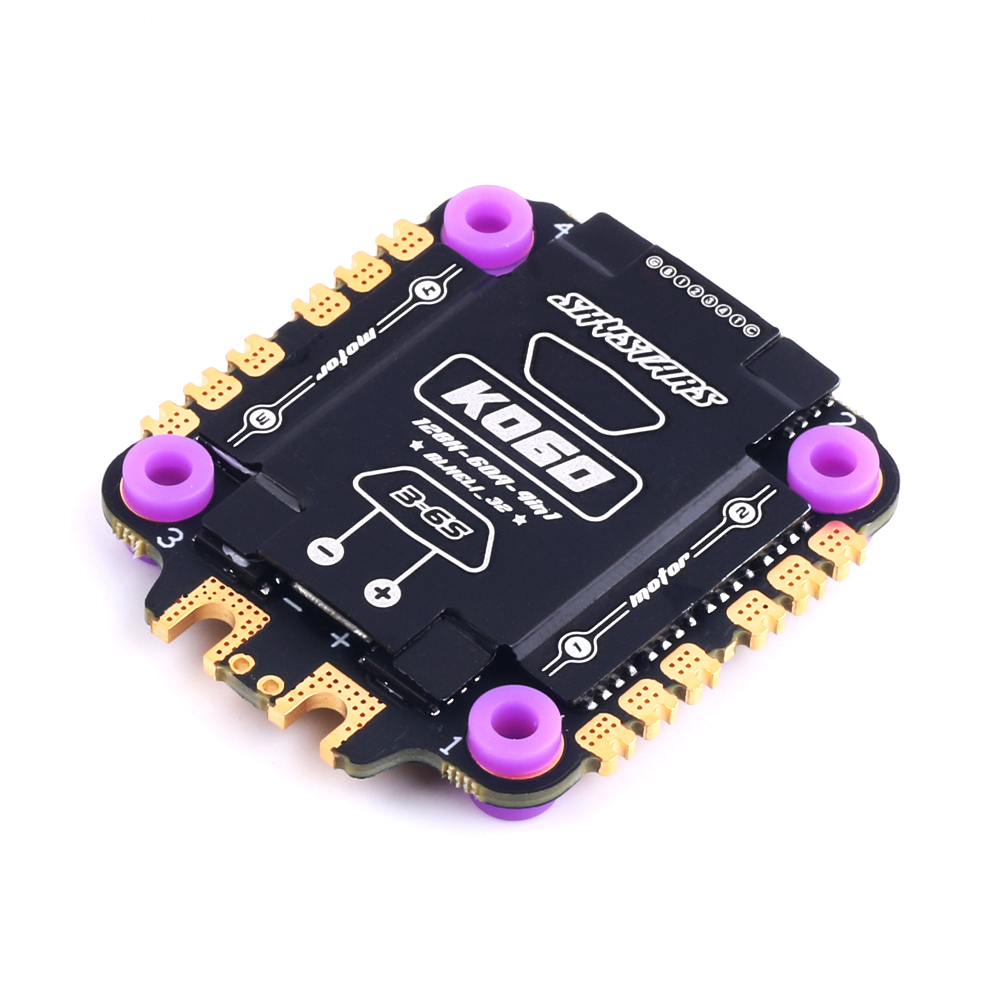

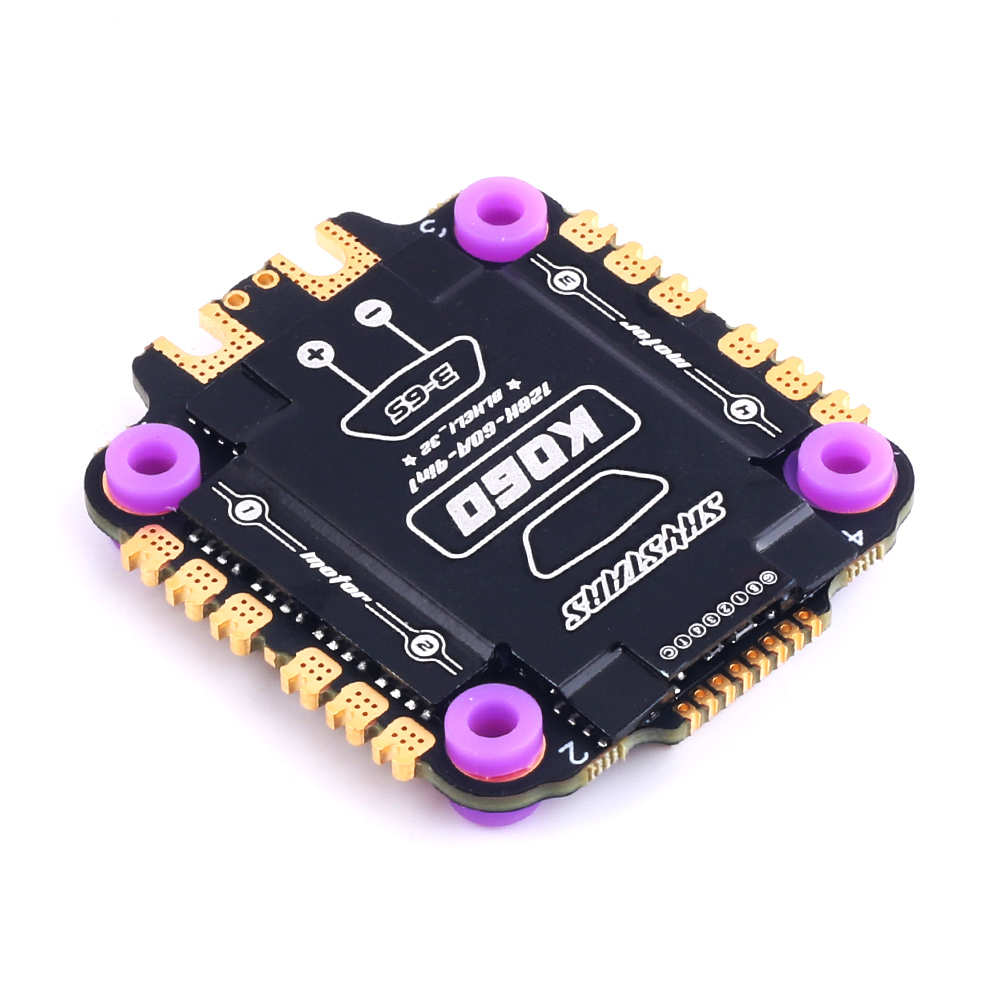

1 x BL32-60A 4in1 ESC
1 x 8P*1.0MM plug wire
1 x Filter capacitor
1 x XT60
2 x Silicone wire
4 x Silicone shock absorber
