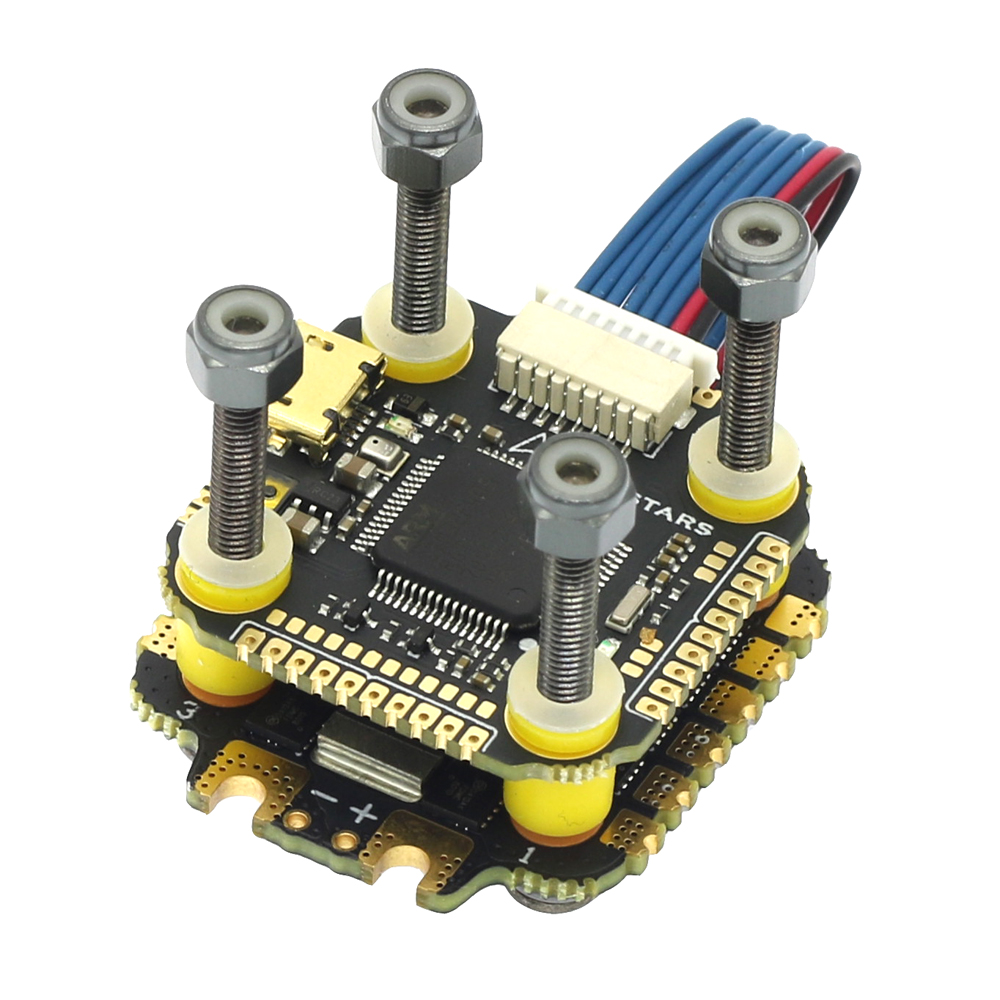

SKYSTARS F405HD Mini Flight Controller & KM40 40A ESC stack

$9,999.00

SKYSTARS F405HD Mini Flight Controller & KM40 40A ESC stack

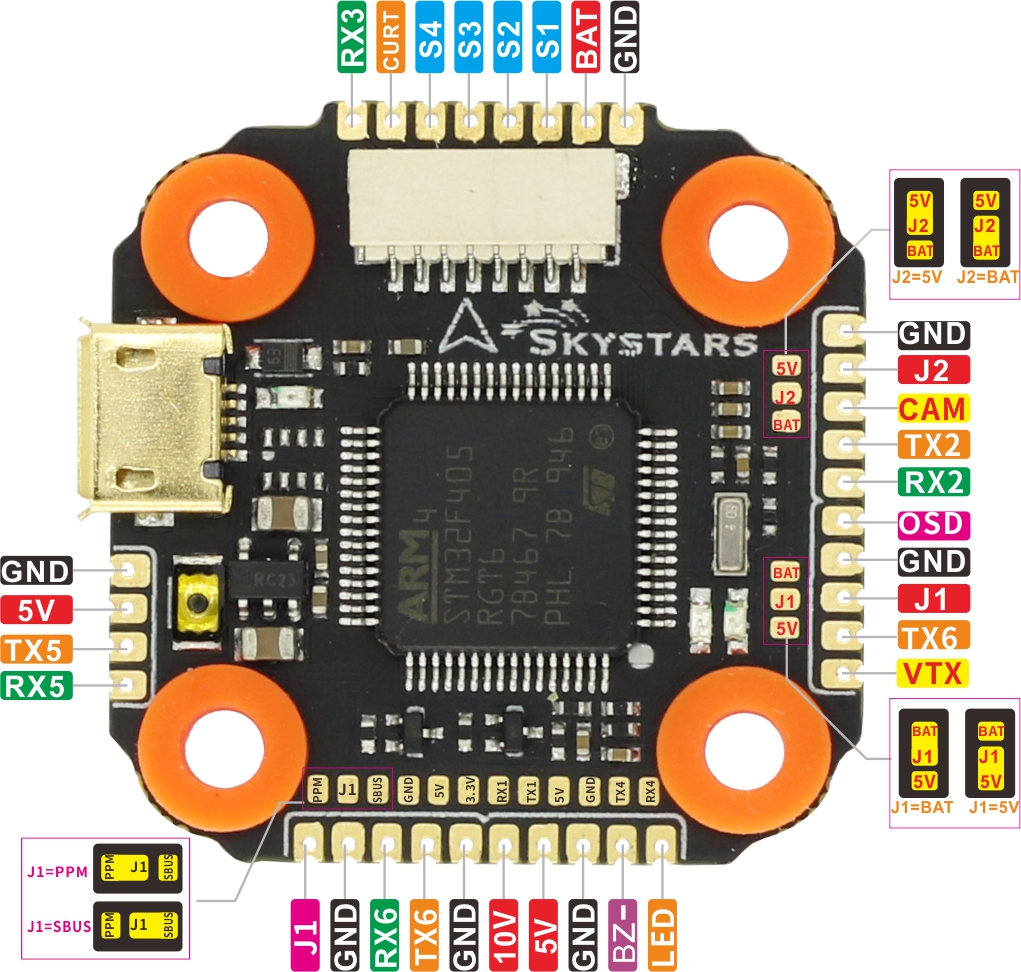

SKYSTARS F405HD Mini Flight Controller

l Item name: F405HD Mini Betaflight Flight Controller
l Input voltage: 3-6S LiPo(11.1V~22.2V)
l MCU:STM32F405RGT6 168MHz
l IMU: MPU6000 (SPI)
l OSD: Betaflight OSD &DJI HD OSD (UART6)
l 6 hardware UARTS (UART123456)
l Receiver:TBS/PPM/SBUS/IBUS/DSM
l Barometer: YES
l Buzzer Pad: YES
l CURR Pad: YES
l BEC 5V 2A & 10V 2A(Max 3A)
l Blackbox: 8MB
l Firmware: SKYSTARS F405HD
l Mounting Holes: 20mm/M3
l Weight: 4g

KM40 40A 4in1 ESC
Specifications
Input voltage: 3-6S LiPo
Con.Current: 40A
Peak Current: 50A≥ 10S
Firmware: BLHeli_32
Support : Dshot 600/1200
Mounting hole : 20X20 mm/M3
BEC: No
Product size: 31*36*3.9mm
Weight: 7.8g
Includes
1x  F405HD Mini Betaflight Flight Controller
1x  Skystars KM40A 32Bit 3-6S 20×20 4in1 ESC
