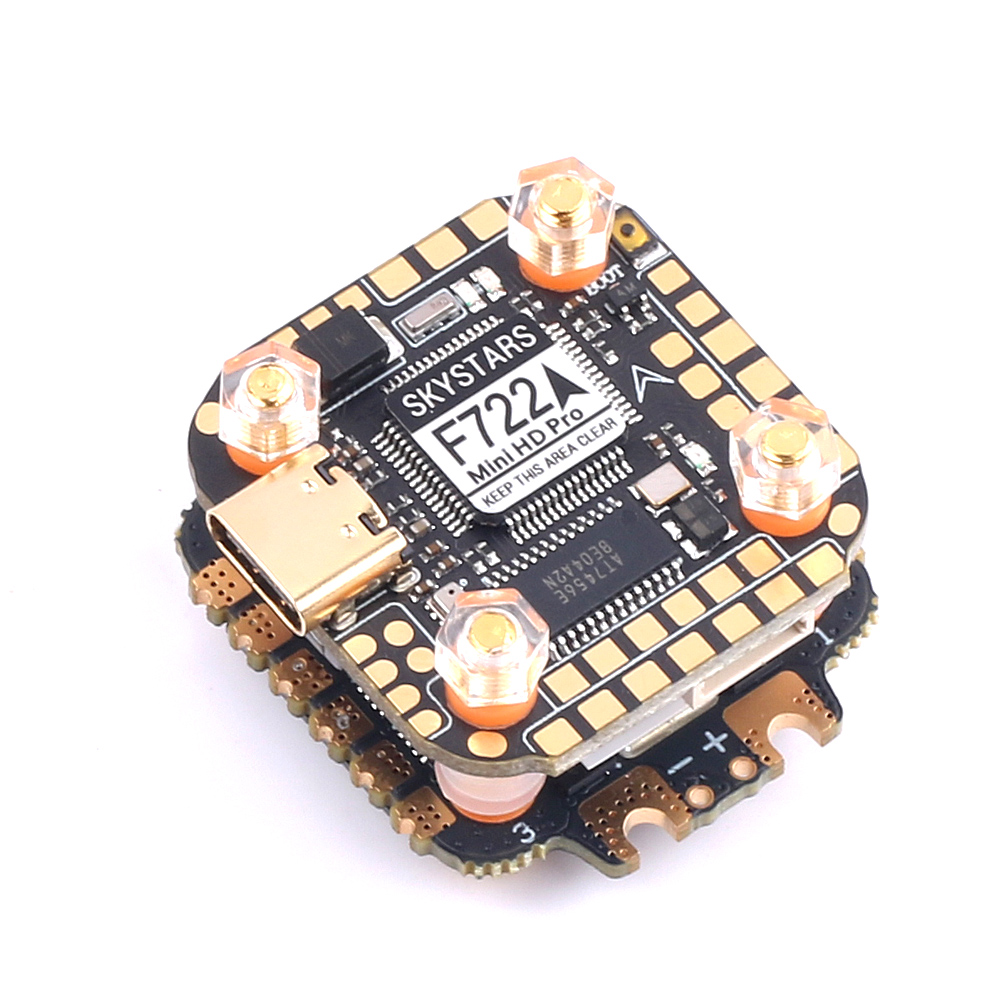

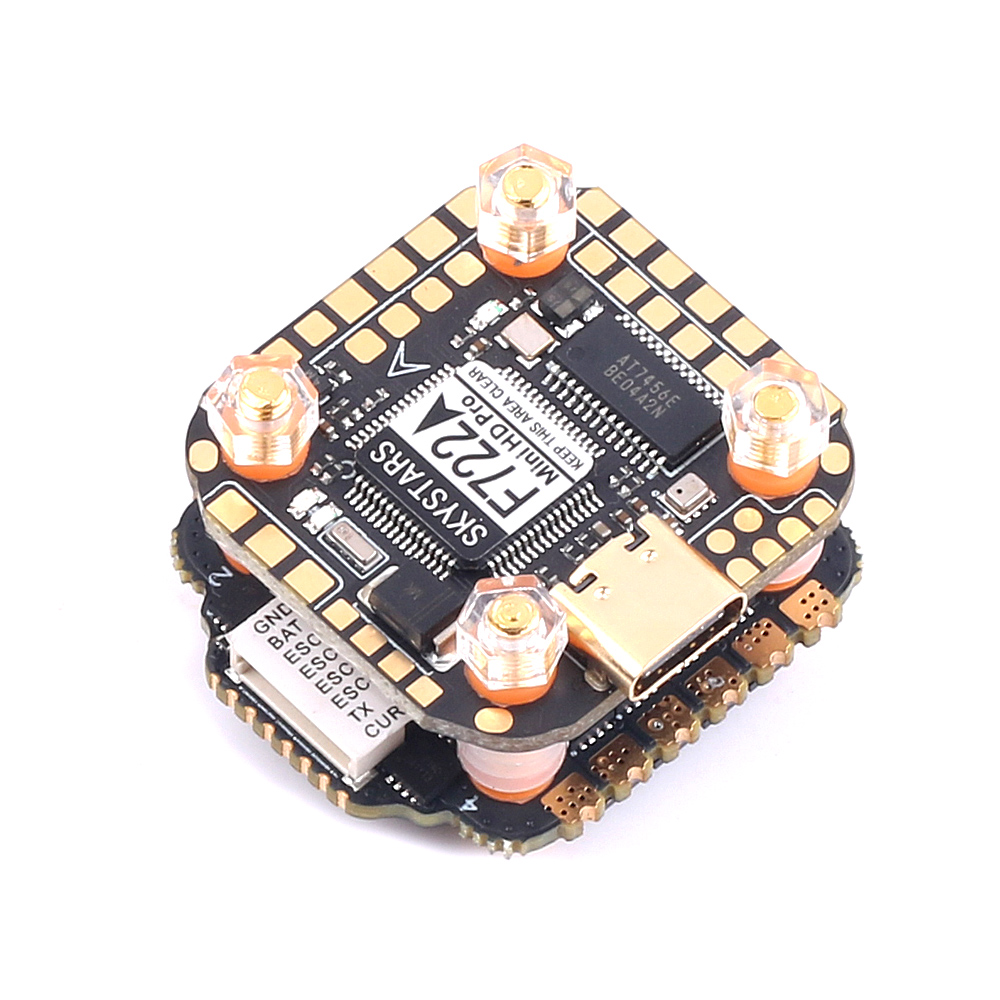

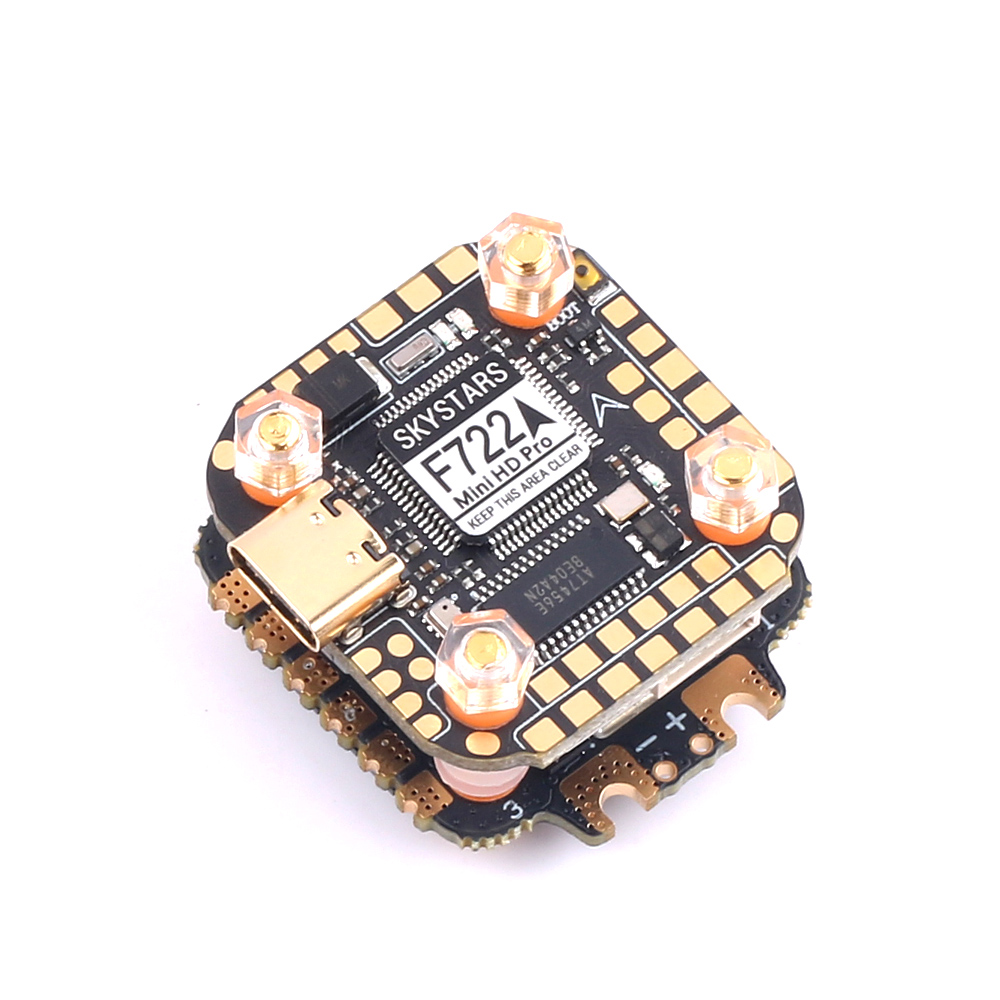

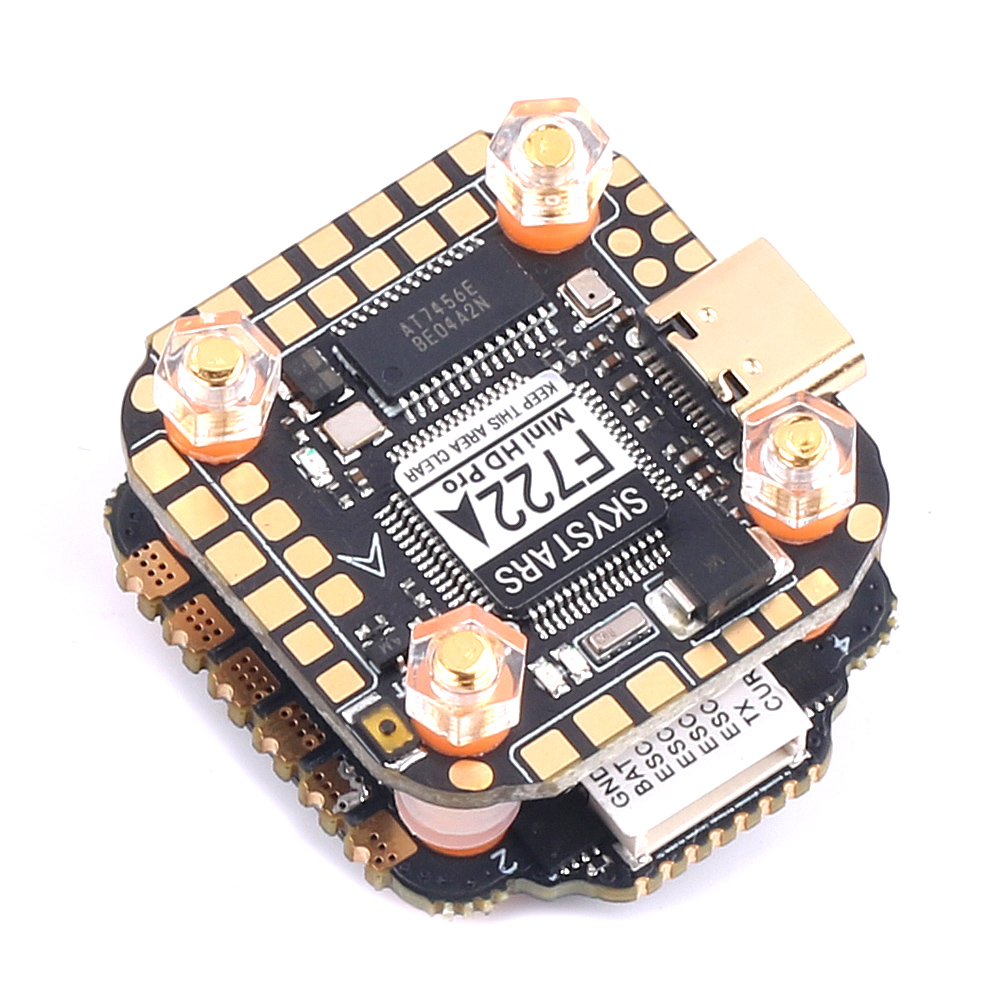

Specifications:
• MCU: STM32F722RGT6 216MHz
• IMU: BMI270 (SPI)
• OSD: Betaflight OSD & DJI HD OSD (UART6)
• 6 hardware UARTS (UART1,2,3,4,5,6)
• Barometer: YES
• Buzzer Pad: YES
• 5V 2A & 10V 2A
• Input Voltage: 3-6S Lipo
• Blackbox: 16MB
• Firmware: SKYSTARS F7HDPRO
• Dimensions: 31x30x7.8mm
• Mounting Holes: Standard 20mm/M3 or M2 square to center of holes
• Weight: 6g
Features:
• Designed the LED installation position in the four corners,support WS2812 Programable LED.
• Supports serial receivers (CRSF,SBUS, iBus, Spektrum) . Support 3.3V Satellite Receiver.
• High-performance / low-noise / high sensitivity IMU. BMI270 with 6-axis gyro and
accelerometer.
.• Support connect DJI HD air module.
• Input voltage10V-26V (3-6S)
• Automatic voltage monitoring.
Specifications
Input voltage: 3-6S LiPo
Con.Current: 40A
Peak Current: 50A≥ 10S
Firmware: BLHeli_32
Support : Dshot 600/1200
Mounting hole : 20X20 mm/M3
BEC: No
Product size: 31*36*3.9mm
Weight: 7.8g
Includes

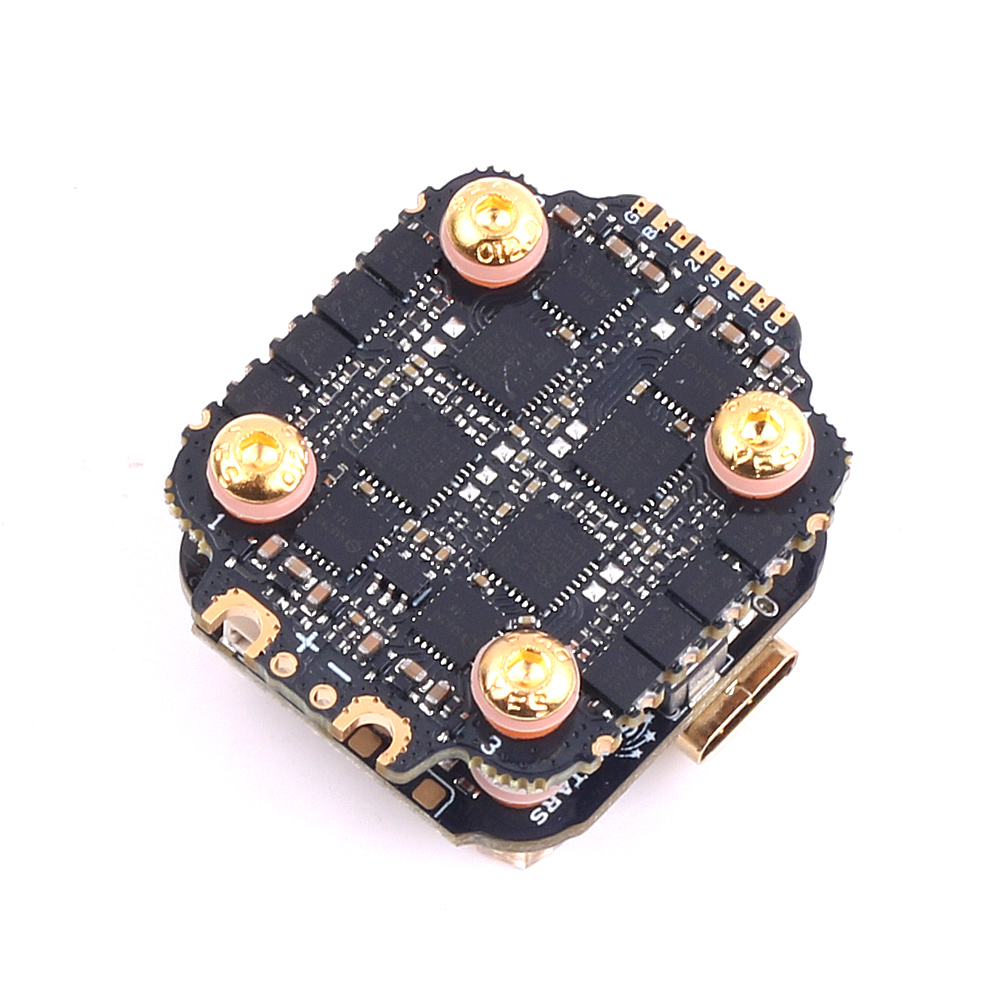

1x Skystars KM40A 32Bit 3-6S 20×20 4in1 ESC
