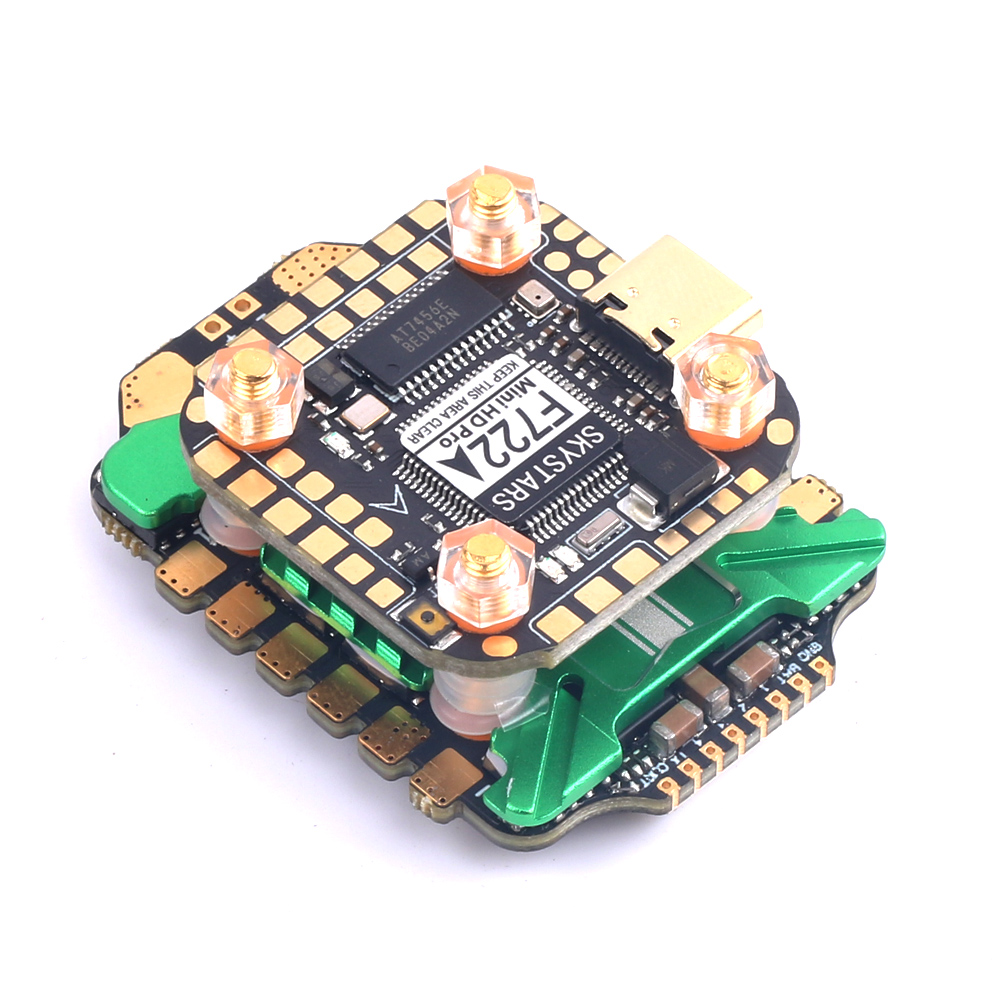

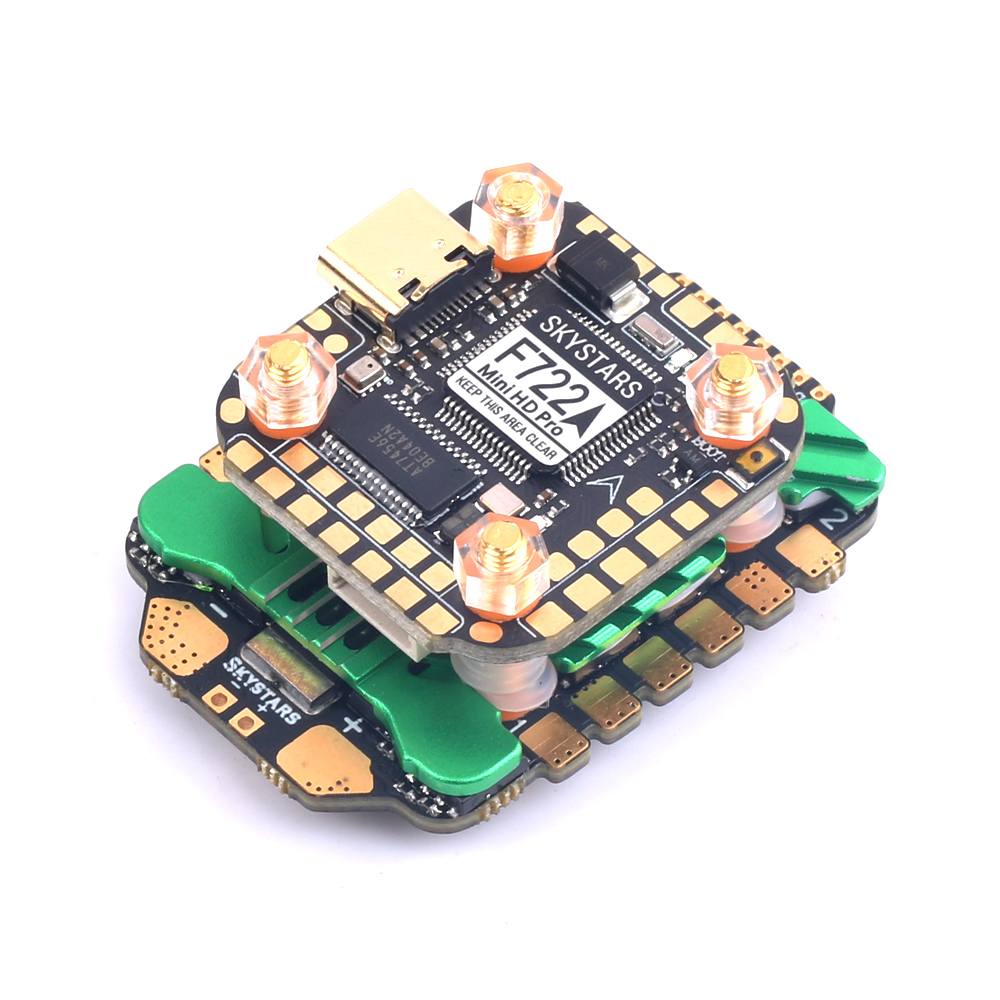

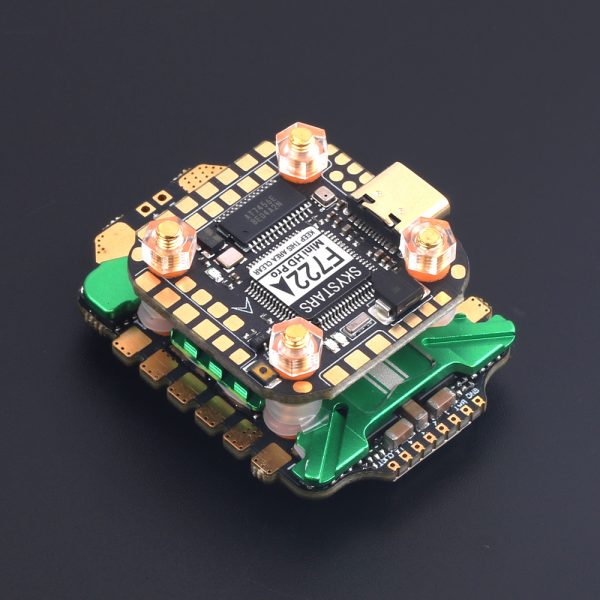

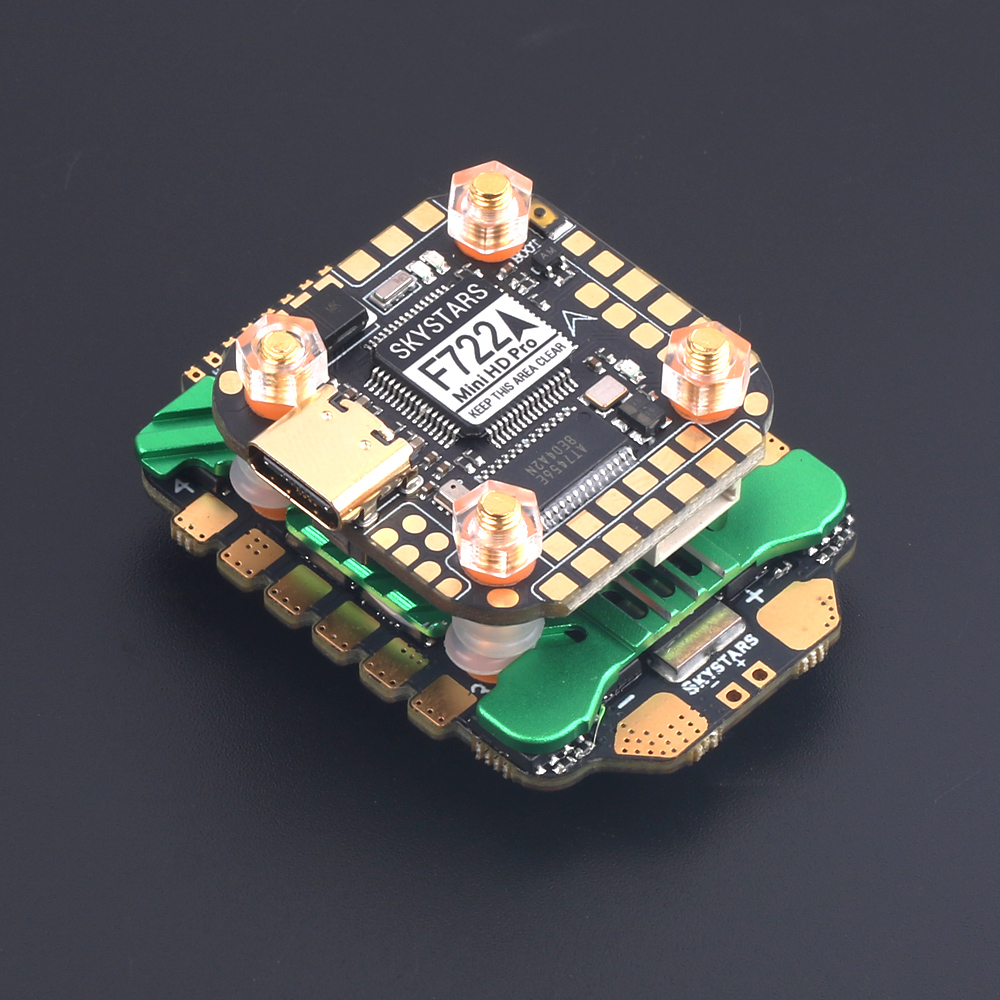

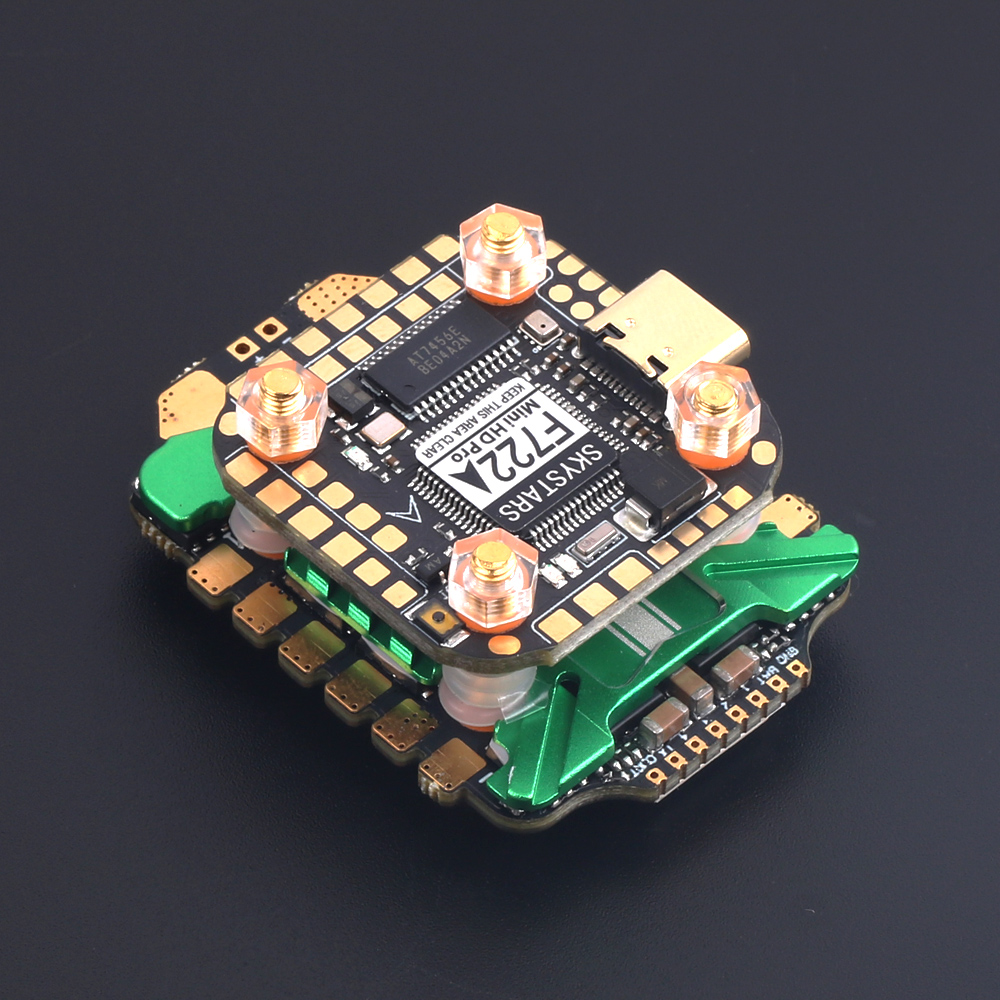

SKYSTARS F722HD Pro Flight Controller & KM45 45A ESC FlyStack

$99.00

Big solder pad
PIT mode for vtx power
Standard 20mm/M3 square to center of holes

Category:

SKYSTARS F722Mini HD Pro Flight Controller & KM45A ESC Description:

Specifications:
SKYSTARS F722 Mini HDpro 20X20 Flight Controller
•  MCU:  STM32F722RGT6 216MHz
• IMU: BMI270 (SPI)
• OSD: Betaflight OSD &  DJI HD OSD (UART6)
• 6 hardware UARTS (UART1,2,3,4,5,6)
• Barometer: YES
• Buzzer Pad: YES
• 5V 2A & 10V 2A
• Input Voltage: 3-6S Lipo
• Blackbox: 16MB
• Firmware: SKYSTARS F7HDPro
• Dimensions: 35x28x7mm
• Mounting Holes: Standard 20mm/M3 square to center of holes
• Weight: 4.8g

Skystars KM45A 32Bit 3-6S 20×20 4in1 ESC
Input voltage: 3-6S LiPo
Con.Current: 45A
Peak Current: 60A≥ 10S
Firmware: BLHeli_32
Support: Dshot 600/1200
Mounting hole : 20X20 mm/M3
BEC: No
Product size: 35*47*6.5mm
Weight: 16.5g

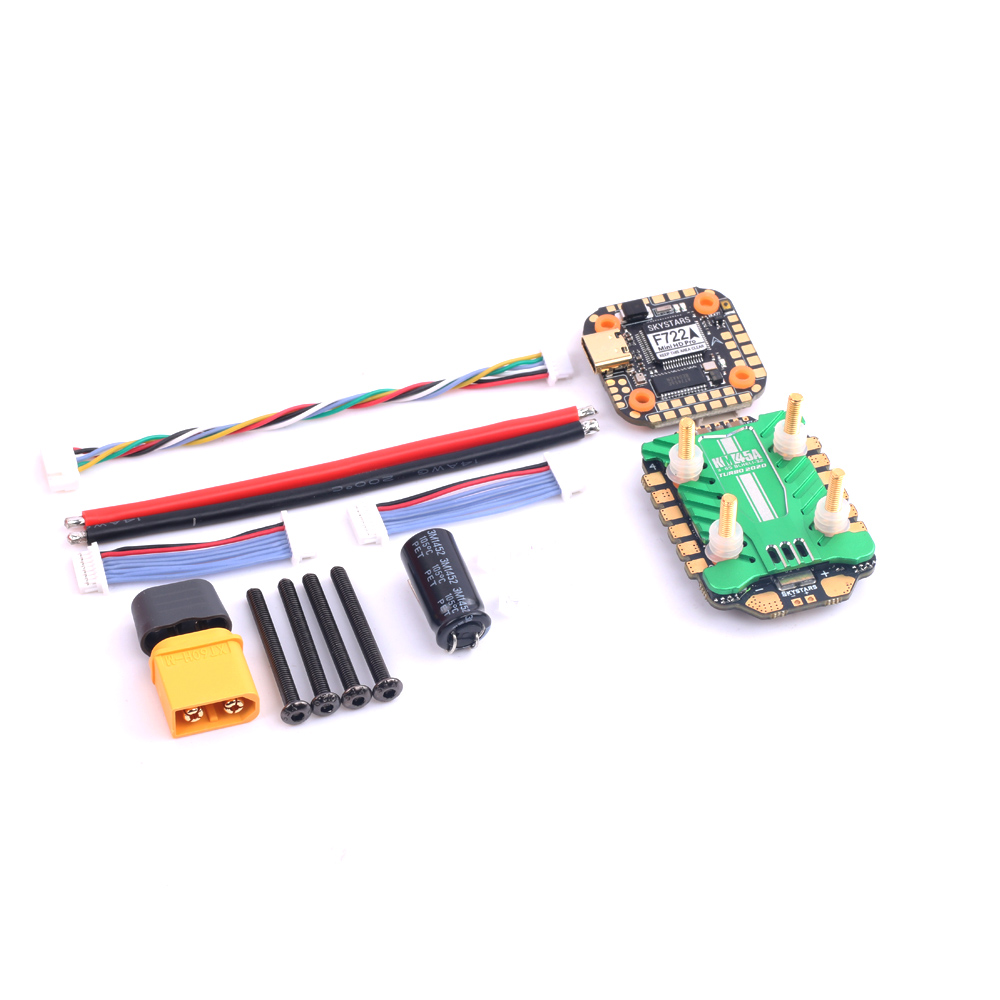

Package Included:
1 x SKYSTARS F722 MiniHD Pro 20×20 Flight Controller
1 x SKYSTARS KM45A 32Bit 3-6S 20×20 4in1 ESC
