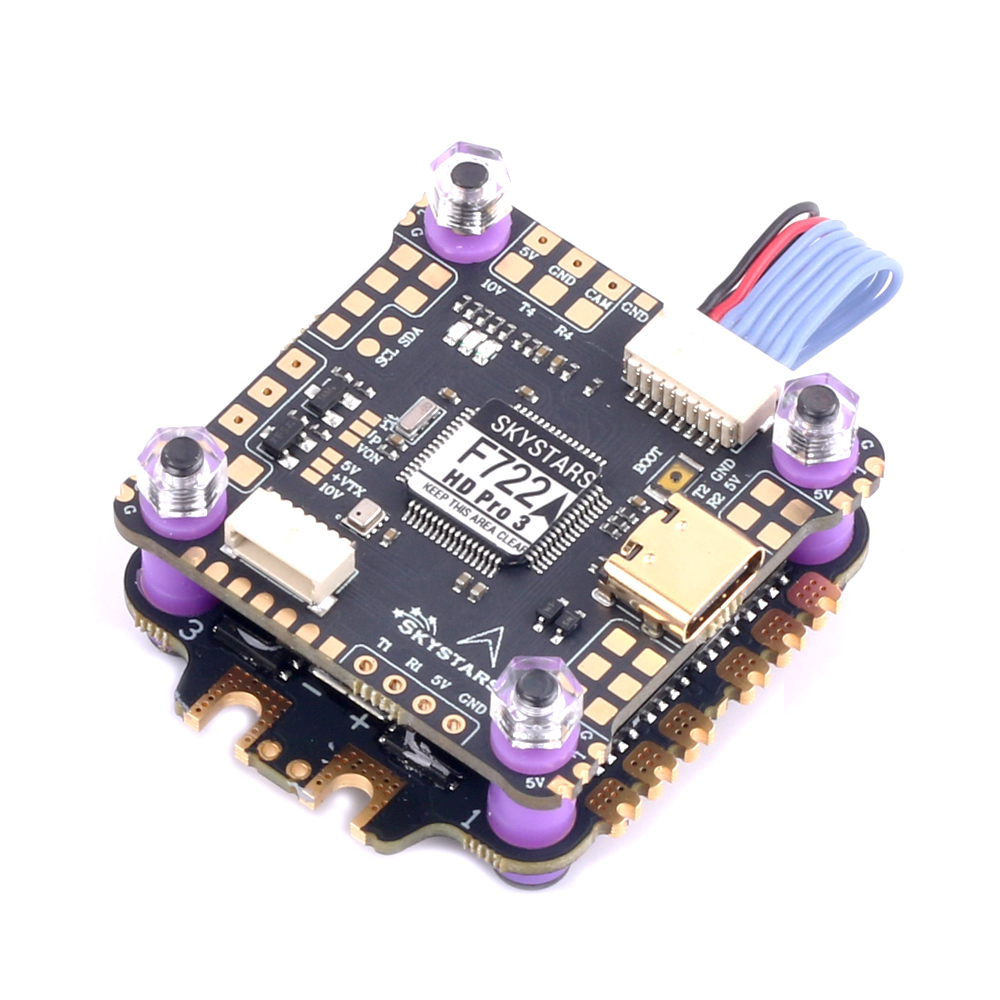

Skystars F7HD PRO3 Flight Controller & KM50 Pro 50A 128K Blheli_32 3-6S ESC Stack 30.5mm

$95.99

Blheli-32 32bit 128K

Category:

SKYSTARS F7HD Pro3 Flight controller and KM50 Pro Blheli-32 32bit 128K 4IN1 ESC fly tower stack

FC Specifications:

MCU: STM32F722RGT6 216MHz
Gyroscope: BMI270
Baro:Bmp280
OSD: Betaflight SPI OSD DJI HD OSD(UART6)
Black box: 16MB
6x Uarts: UART 1/2/3/4/5/6
4x PWM outputs
1x I2C
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
USB Type-C(USB2.0)
1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
VTX 10V/Vbat filtered power ON/OFF switch
DJI FPV OSD is supported by any spare UART
LED: 4 LED independent pads, support WS2812 programming lamp output.
Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.

Power:

Input voltage: 3-6S
BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
LDO 3.3V: Max.250mA

FC Firmware:

BetaFlight firmware: SKYSTARSF722Pro
INAV firmware:SKYSTARSF722HD

Mounting:

Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation
External size 39mm × 39mm
Flight control weight: 6.9g
Flight control onboard voltage sensor.



Flashed with the latest Blheli_32 firmware in factory, support telemetry functions (including voltage ,RPMS & current )

Specifications:

Input voltage: 3-6S LiPo
Con.Current: 50A
Peak Current: 60A≥ 10S
Firmware: BLHeli_32
Support : Dshot 600/1200
Mounting hole : 30.5mm/M3
BEC: No

Product size: 41*46*7.6mm
Weight: 17g about

Included:
1 x Skystar KM50A Pro 3-6S 4 in 1 ESC
4 x Damping Rubbers (M3x3.5mm)
1 x XT60 connector and wires
2 x 8pin wiring harness (1x 70mm,1x 50mm)
1 x 35v 560uf Capacitor
