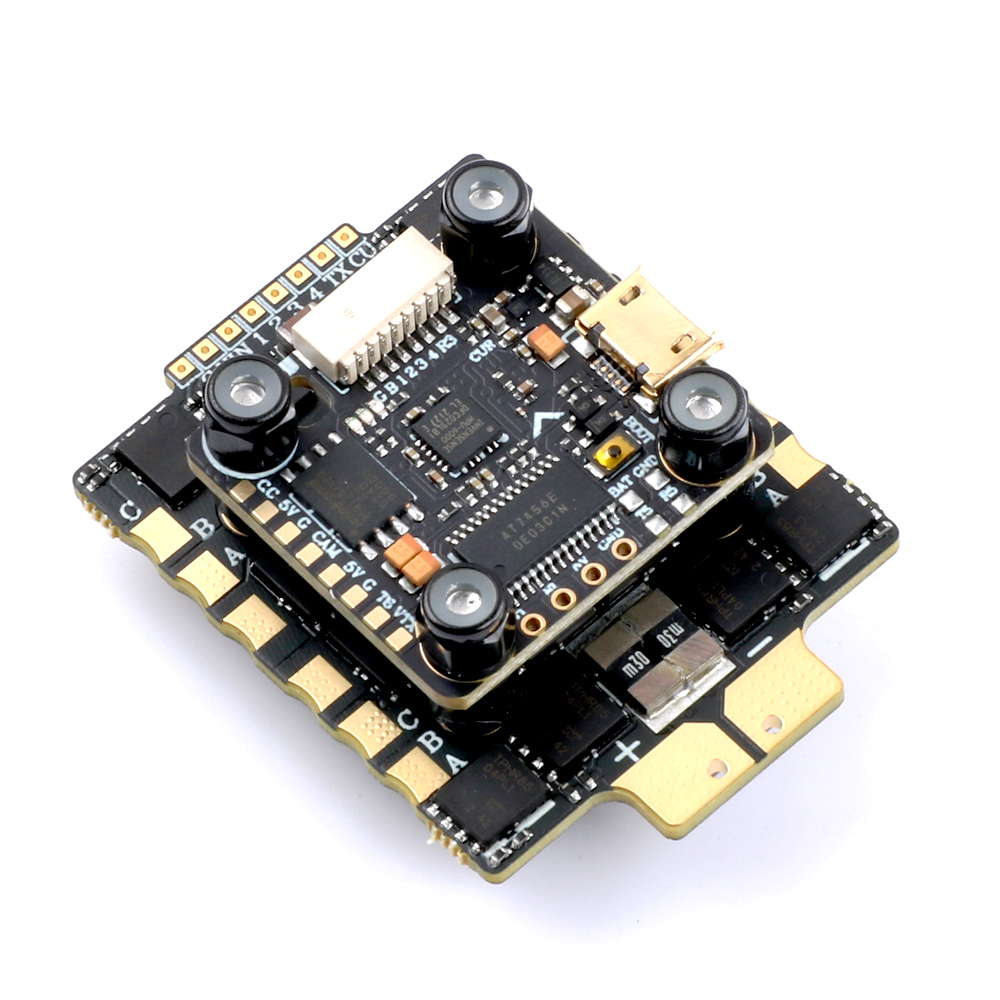

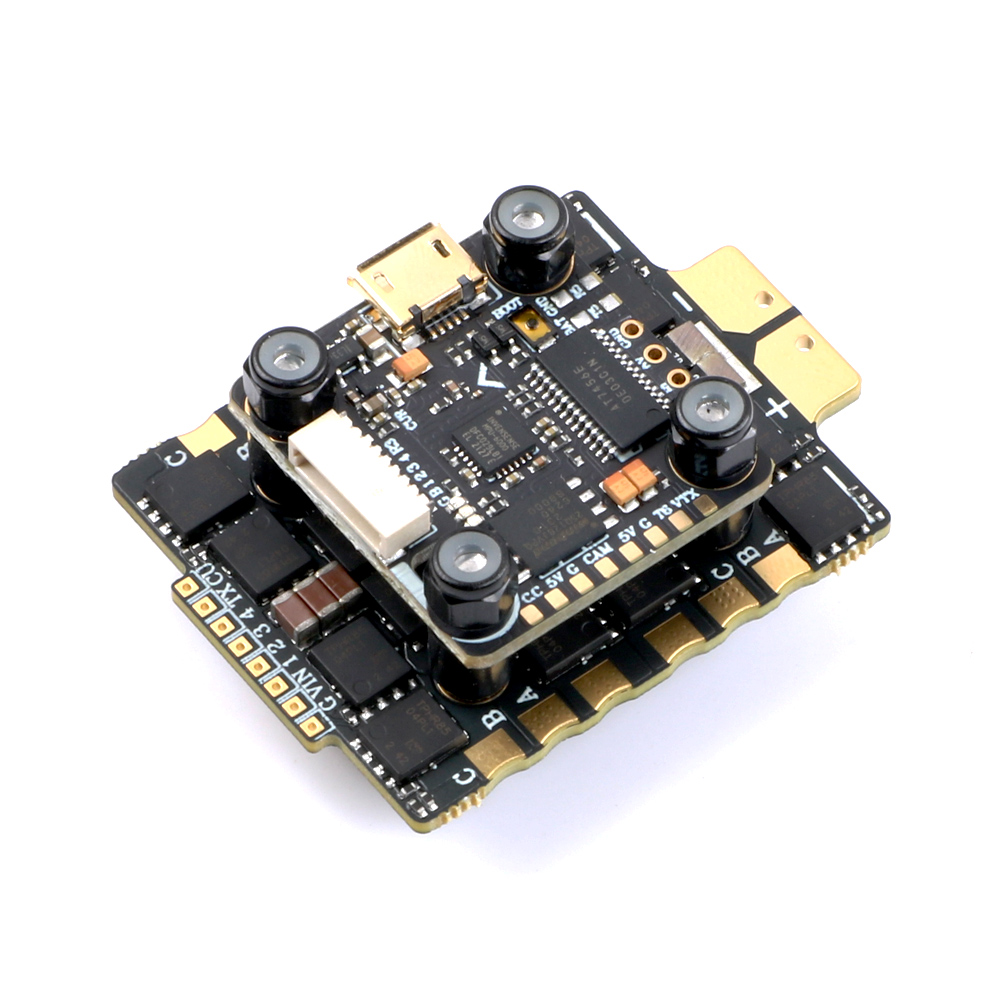

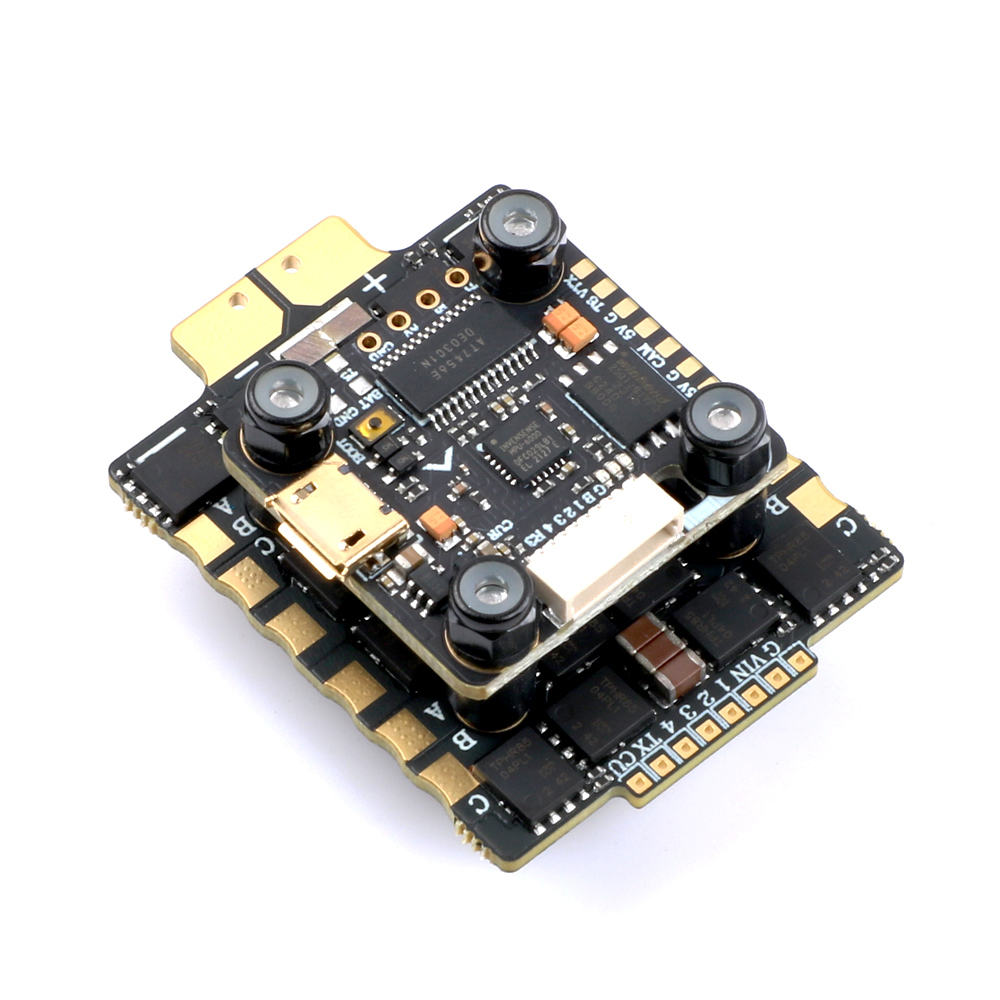

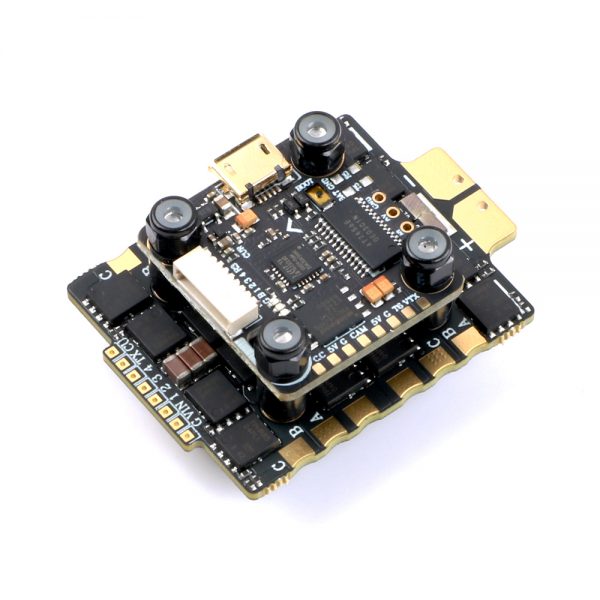

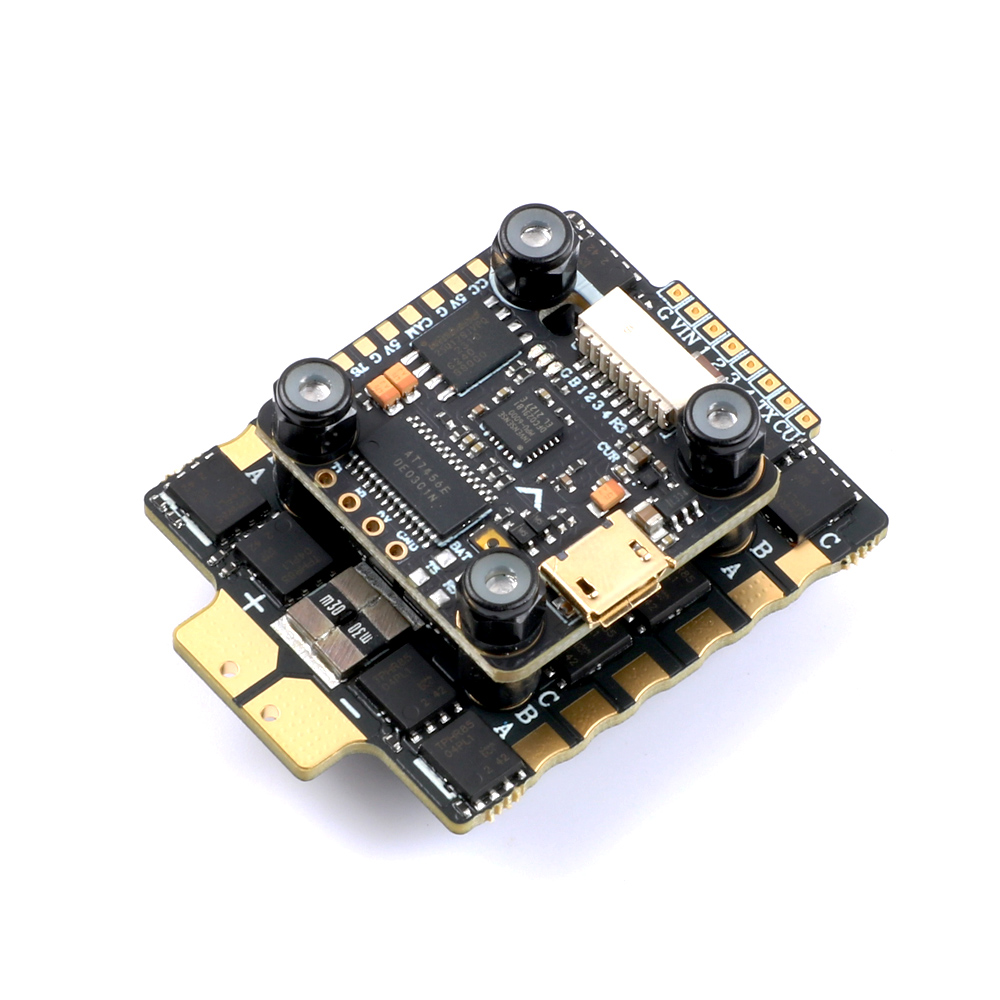

SKYSTARS F7RS Flight Controller & MVP60A F4128K ESC flyStack


Born to FPV race

MVP60A 80A Peak F4 128K ESC

MCU: STM32F722RGT6 216MHz

IMU: MPU6000 (SPI)



SKYSTARS F7RS Flight Controller & MVP60A F4 MCU ESC Stack Description:



SKYSTARS F722RS 20X20 Flight Controller

•  MCU: STM32F722RGT6 216MHz

• IMU: MPU6000 (SPI)

• OSD: Betaflight OSD & DJI HD OSD (UART6)

• 6 hardware UARTS (UART1,2,3,4,5,6)

• Barometer: NO

• Buzzer Pad: YES

• 5V 3A

• Input Voltage: 3-6S Lipo

• Blackbox: 16MB

• Firmware: SKYSTARS F7RS

• Dimensions: 26x28x7mm

• Mounting Holes: Standard 20mm/M3 square to center of holes

• Weight: 4.9g

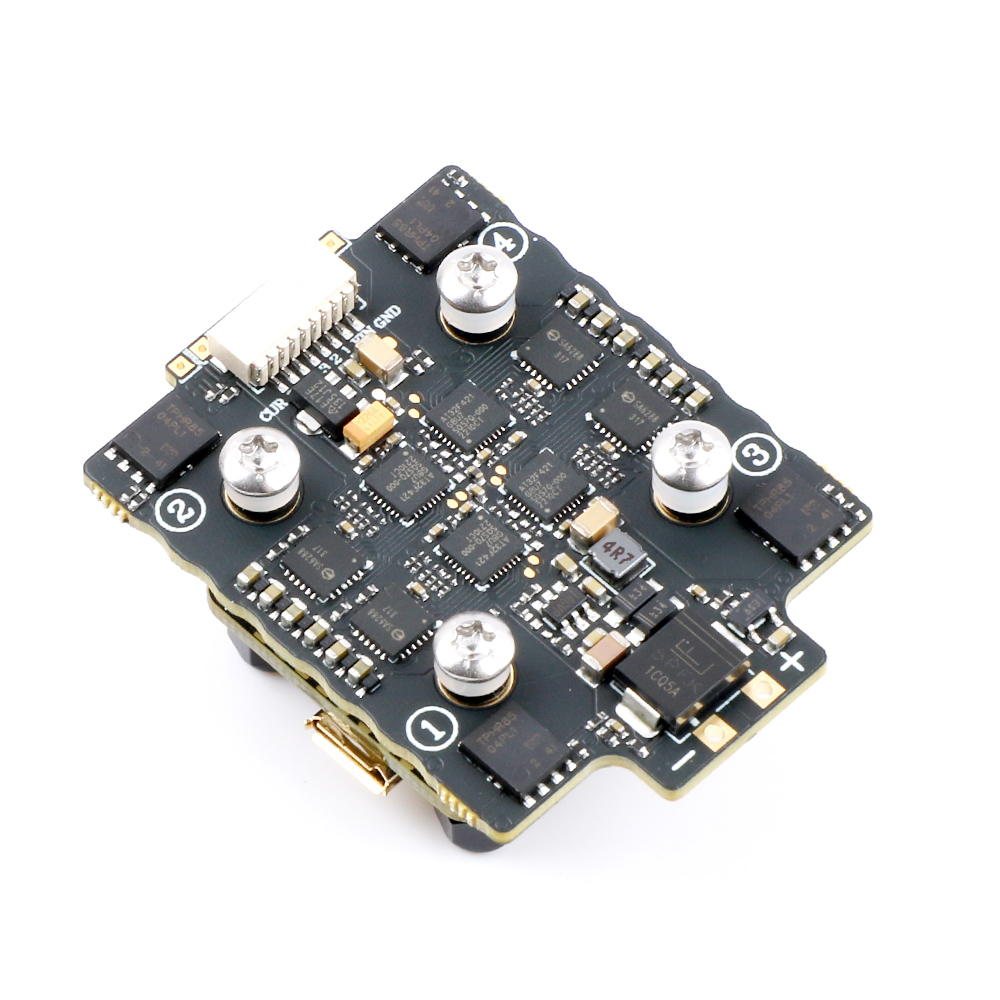

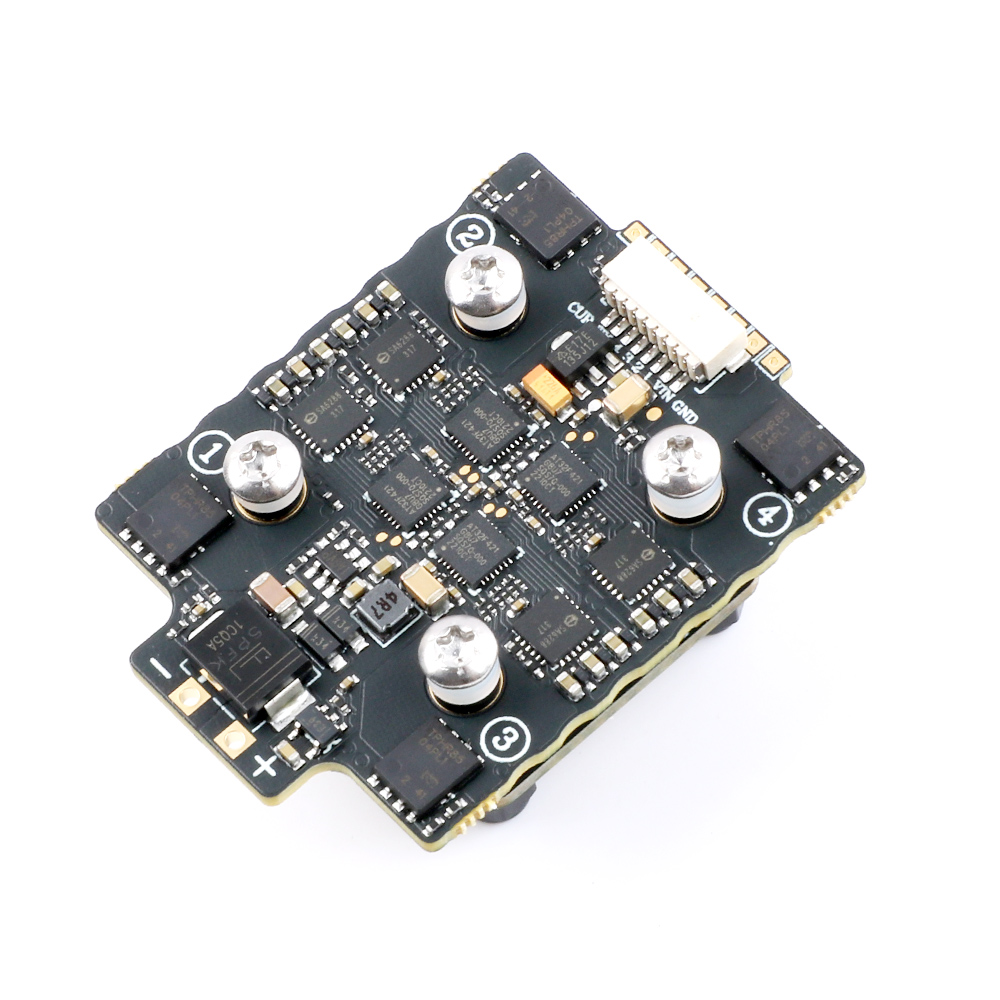

Skystars MVP60A F4 32Bit 3-6S 20×20 4in1 ESC

Input voltage: 3-6S LiPo

Con.Current: 60A

Peak Current: 80A≥ 10S

Firmware: BLHeli_32

Support: Dshot 600/1200

Mounting hole : 20X20 mm/M3


Product size: 35.8*47*6.5mm

Weight: 17g


Package Included:

1 x SKYSTARS F722RS 20×20 Flight Controller

1 x SKYSTARS MVP60A 32Bit F4 3-6S 20×20 4in1 ESC
