0.8g Skystars Supreme 2.4GHz Telemetry with Dual Antenna Div

$89.00

0.8g Skystars Supreme 2.4GHz 200mw Telemetry with Dual Antenna Diversity Receiver for ExpressLRS 100% ELRS Devs Approved Low Latency High Refresh Rate for Freestyle Racing Longrange FPV Drones

Special thanks to Jye Smith, Alessandro, Wezley Varty, Peho, Deadbyte and Just Hack It for their collaboration

Parameters:
ELRS Developers Approved
ELRS 2.4GHz
MCU: ESP8285
RF: SX1280
PA/LNA: SE2431L
Antenna connector: IPEX 1
RF Frequency: 2.4GHz (2400~2480MHz) Telemetry power: 250mw (~23dbm)
SE2431L RX_Gain: 12.5dB
Diversity: Antenna Switching Default: ANT2
Receiver protocol: CRSF
Input voltage: 4.5~5V DC @ 5V pad Power dissipation: 40~45mA (Before Bind), 70~75mA(Binding), 90~95mA(Wifi Mode) PCB size: 20mm x 11mm
Weight: 0.8g without antennas

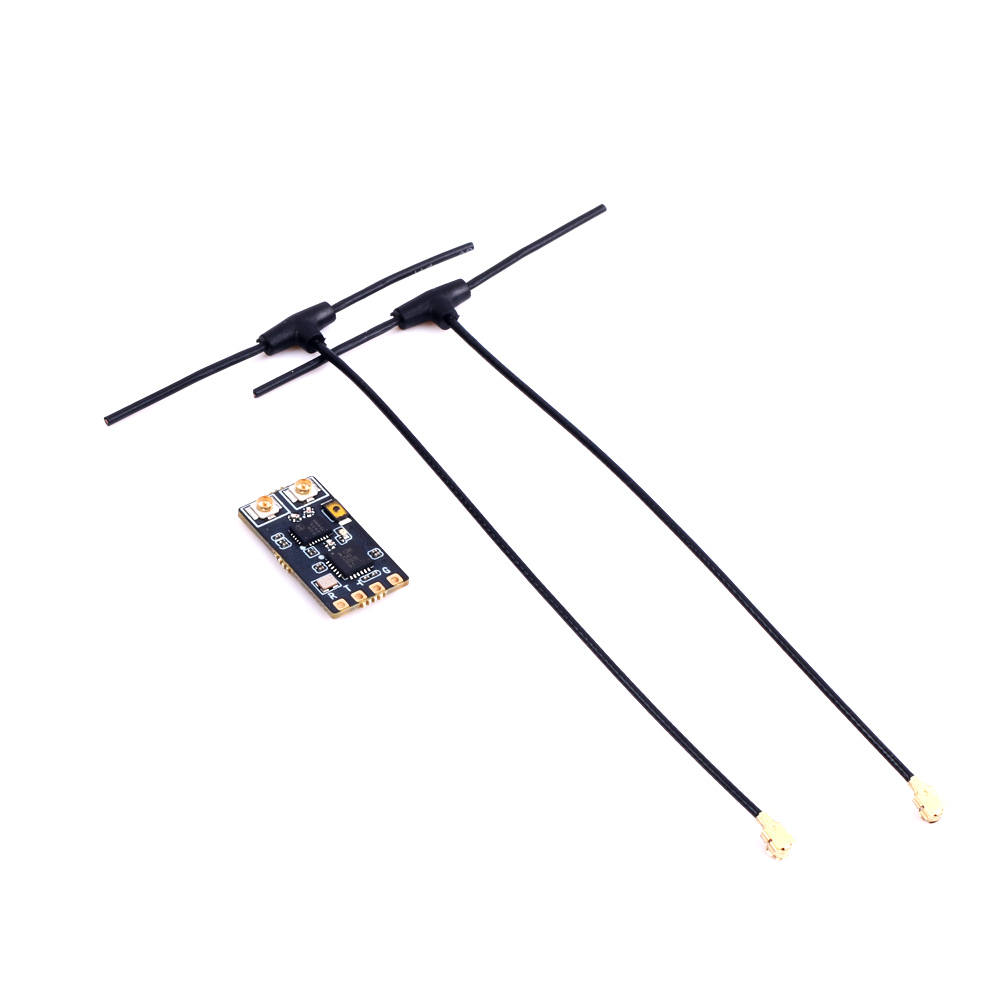

Packing: 1x Skystars Supreme 2.4GHz, 2x T Antennas
Firmware: Skystars SS4D_2400_RX
Firmware update via UART or WIFI
SS4D_2400_RX: Enable “USE_DIVERSITY” ( Checked ) when flashing in ExpressLRS configurator
