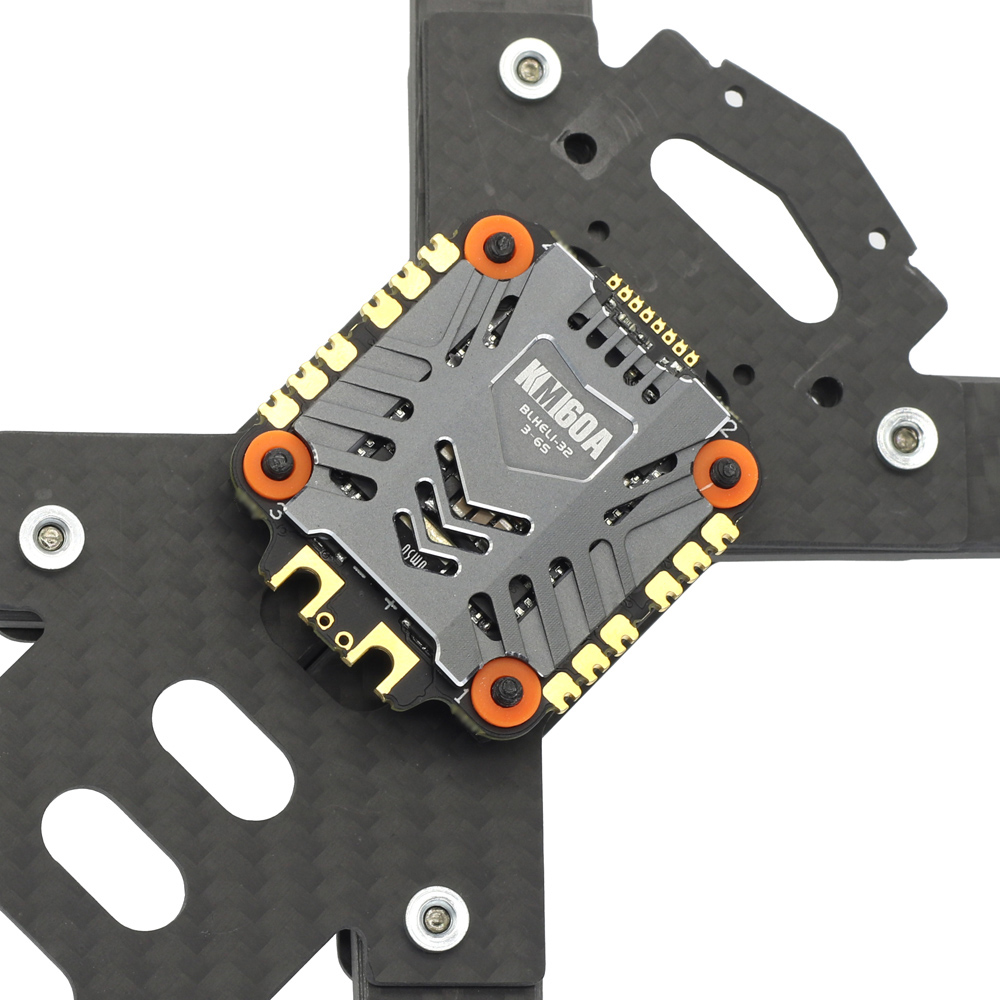

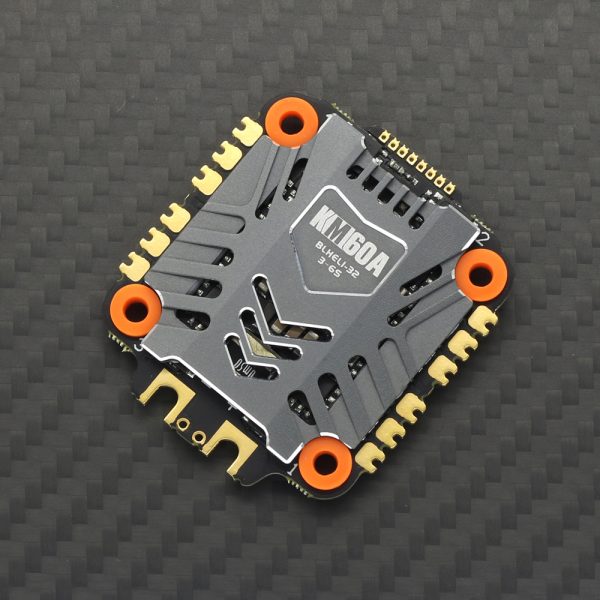

Skystars KM60 60A Blheli_32 ESC

$99.00

Excellent over-current capability.

Category:

1. Excellent over-current capability.

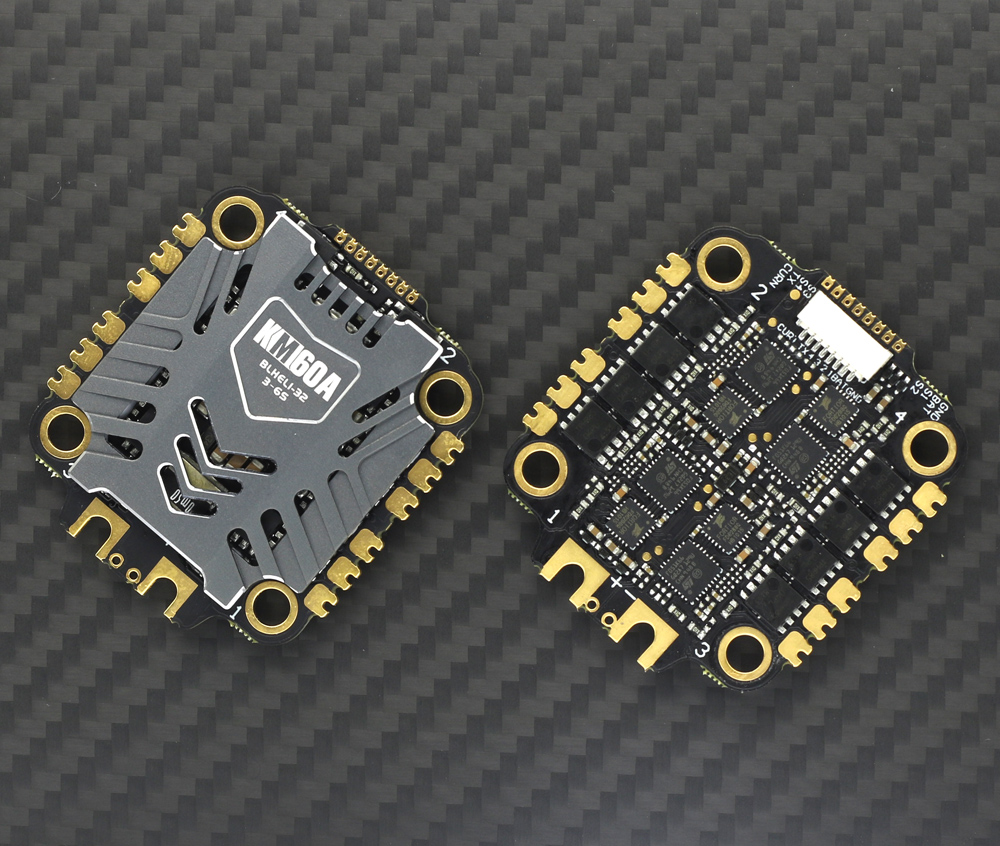

By adopt the best PCB material and PCB production process. Such as application of high TG materials , 3oz copper PCB & 2μm gold deposition process on PCB. Together with 6-layer layout design of board,compared with others common 4 layer,It can withstand bigger current.

2. Extreme stably support 6S LiPo battery

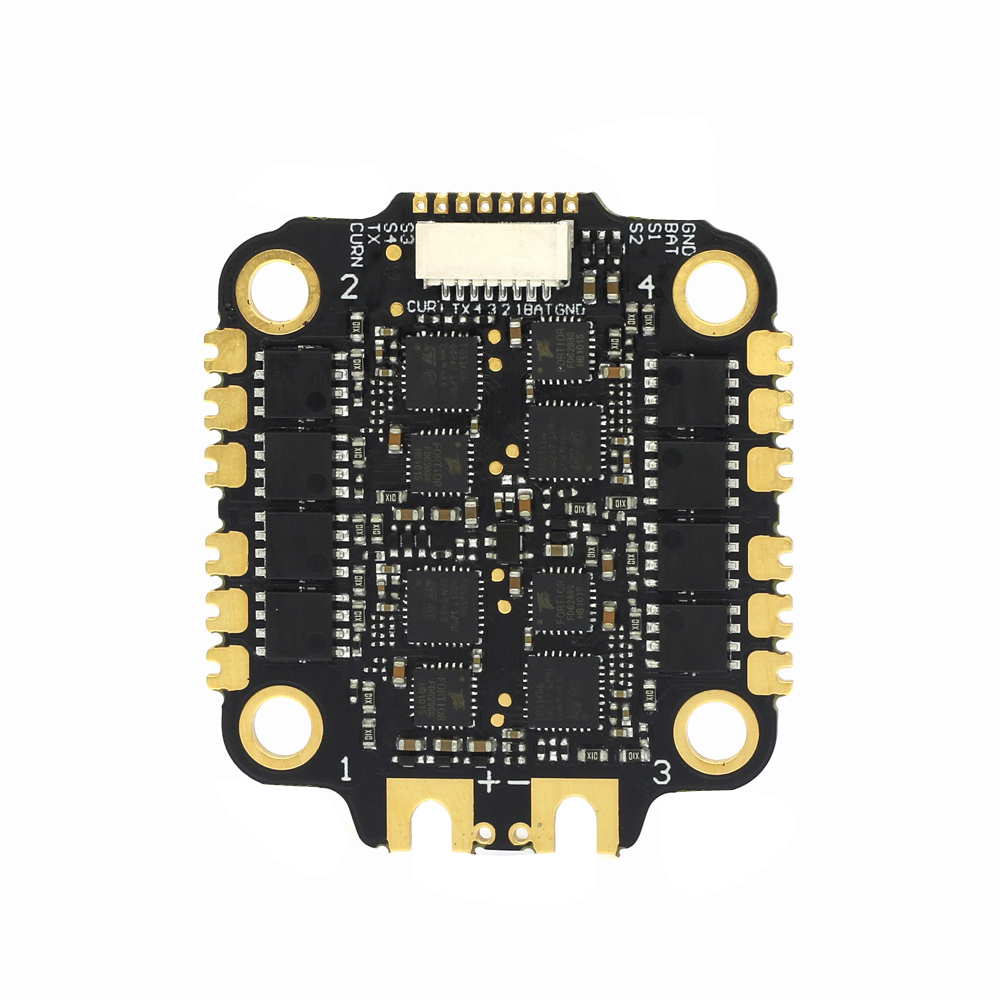

By use of 24 pcs of new Toshiba standard 40V 5×6 Mosfet & imported from USA or Japan electronic materials. Plus advanced lead-free SMT Processing technology.It make ESC can fully support 6s battery and get a better performance.

3. Excellent heat dissipation performance

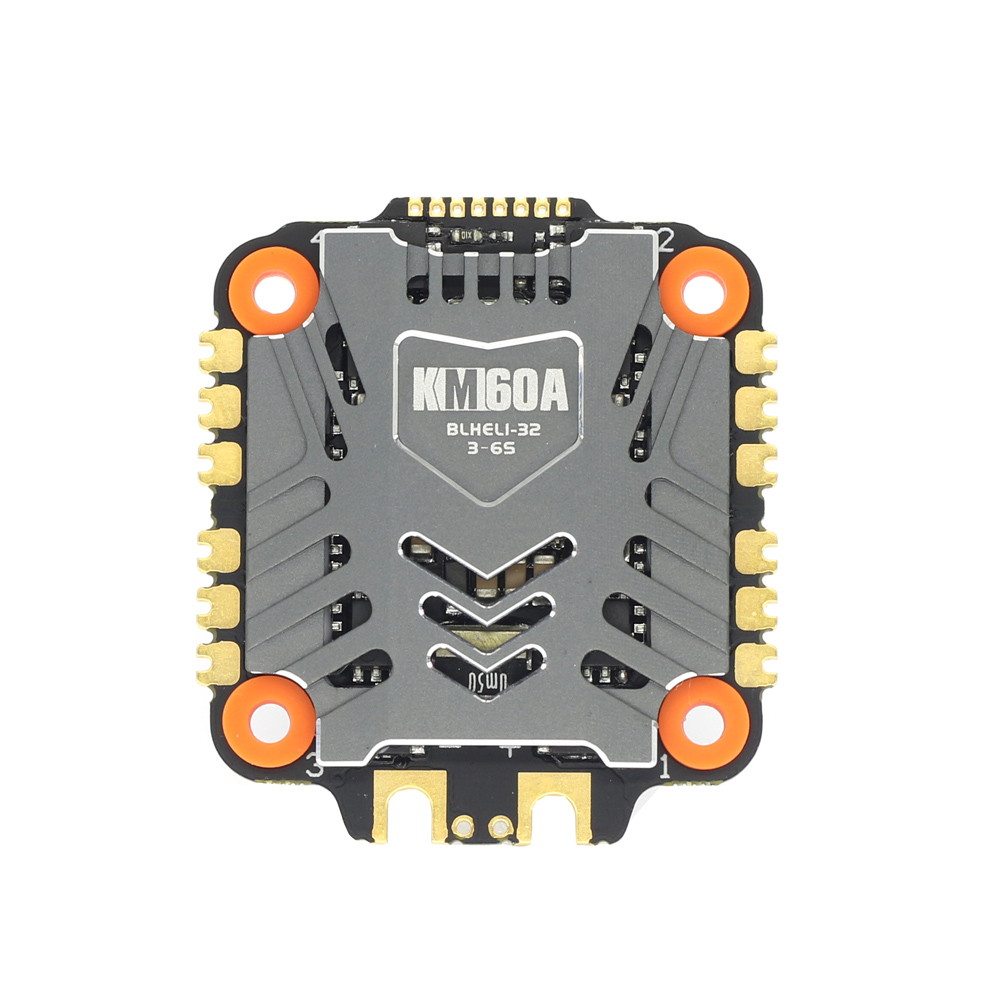

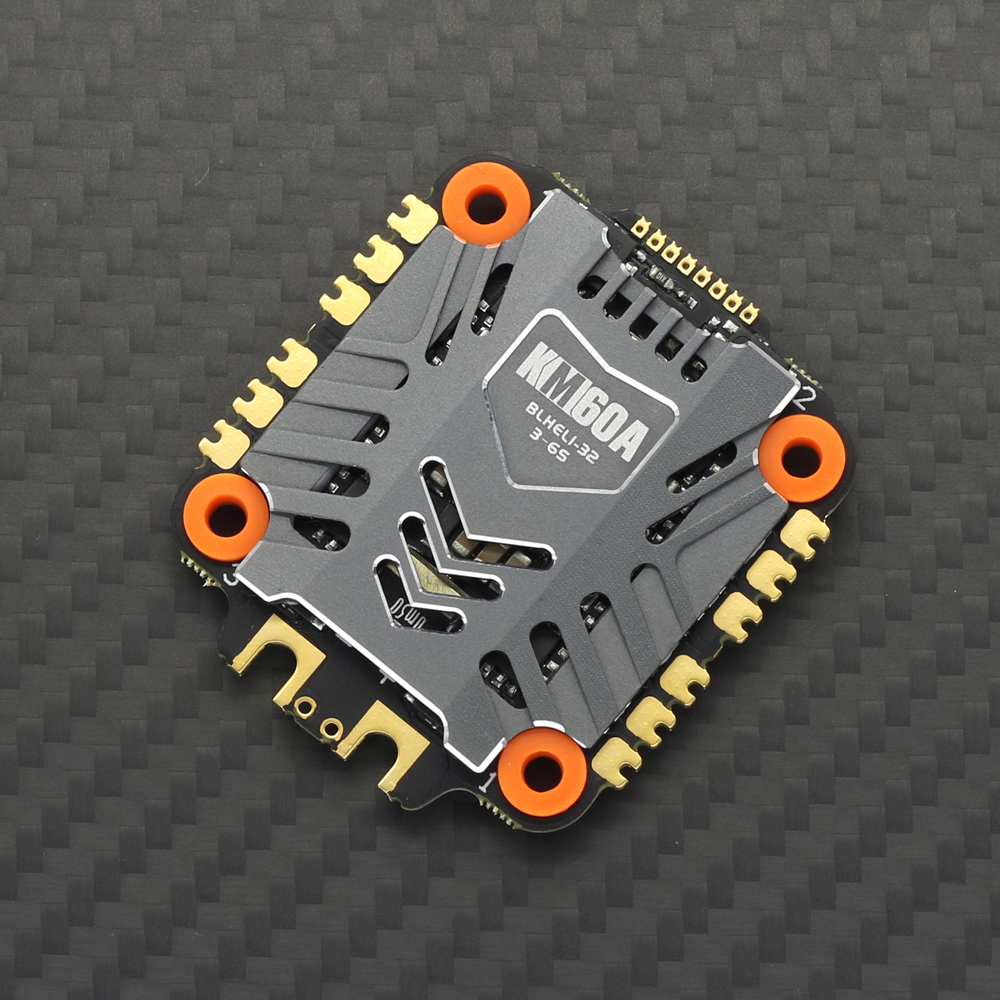

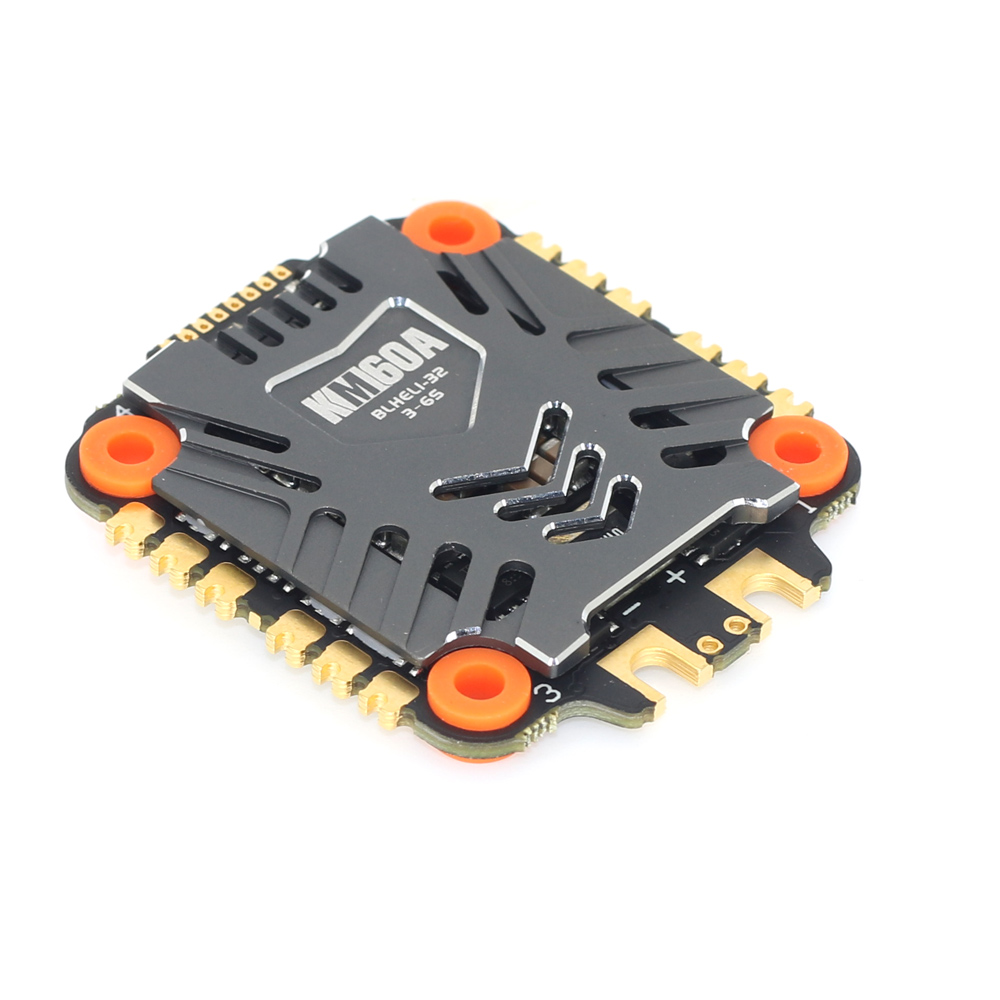

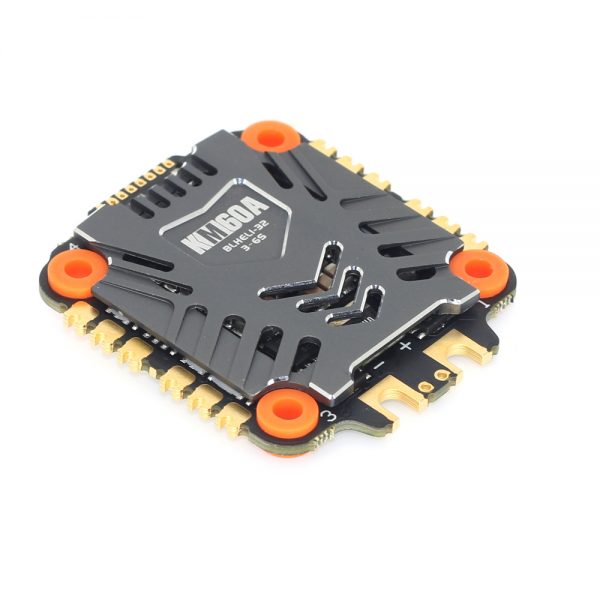

The CNC hollow aluminum alloy shell use, Not only good for heat dissipation, but also get a beautiful appearance.

4. Better control performance
Flashed with the latest Blheli_32 firmware in factory, support telemetry functions (including voltage ,RPMS & current )

Specifications:
Input voltage: 3-6S LiPo
Con.Current: 60A
Peak Current: 80A≥ 10S
Firmware: BLHeli_32
Support : Dshot 600/1200

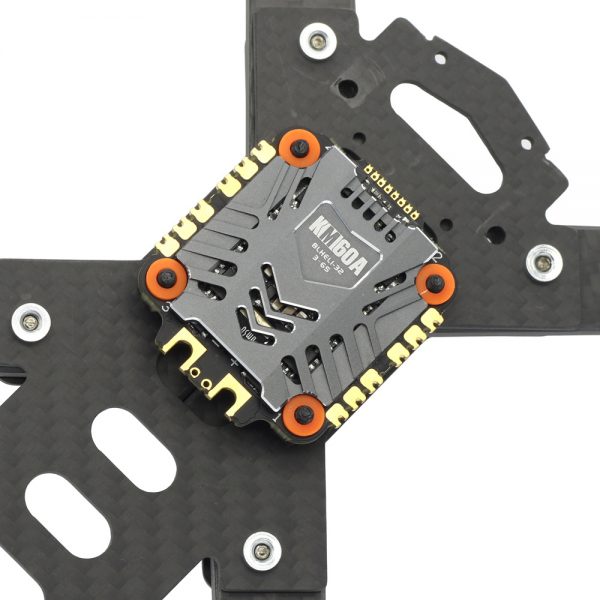

Mounting hole : 30.5mm/M3
BEC: No
Product size: 41*46*7.6mm
Weight: 18g

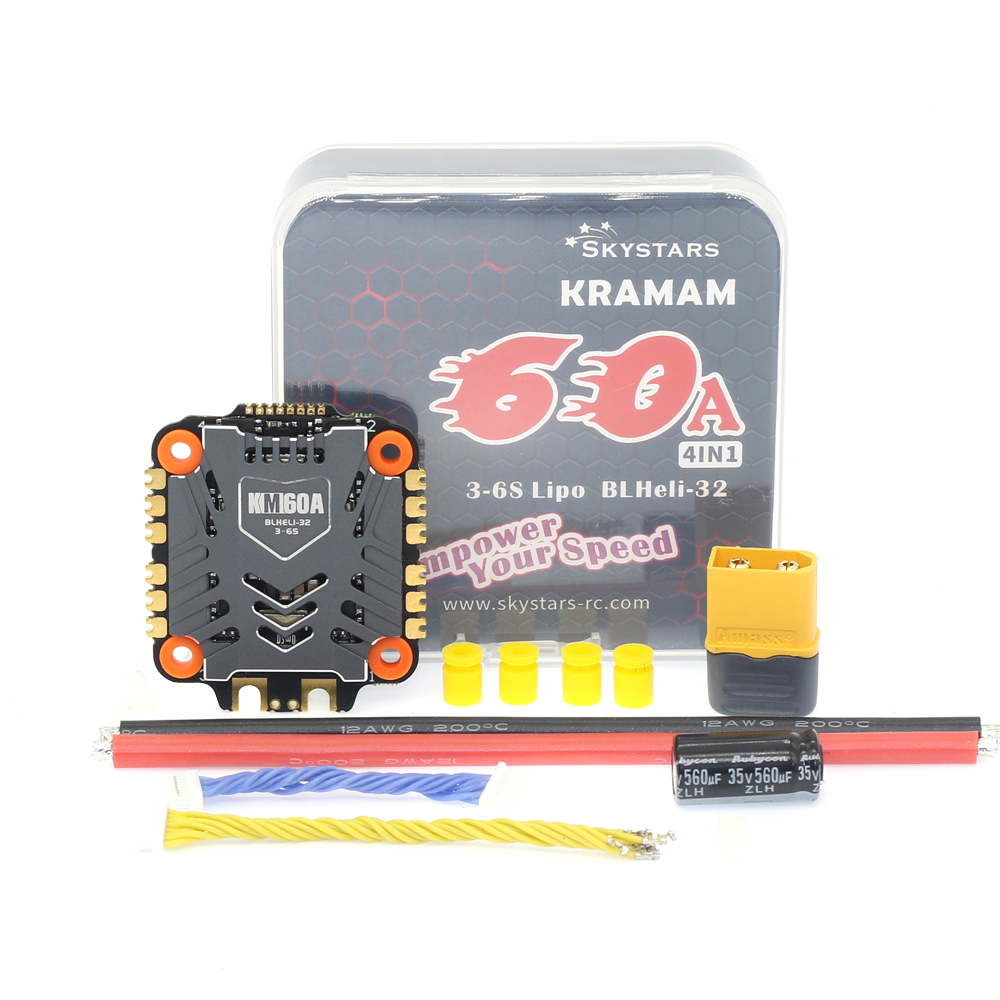

Included:
1 x Skystars KM60 60A 3-6S 4 in 1 ESC
4 x Damping Rubbers (M3x8mm)
4 x Damping Rubbers (M3x3.5mm)
1 x XT60 connector and wires
2 x 8pin wiring harness (1x 70mm,1x 50mm)
1 x 35v 560uf Capacitor
