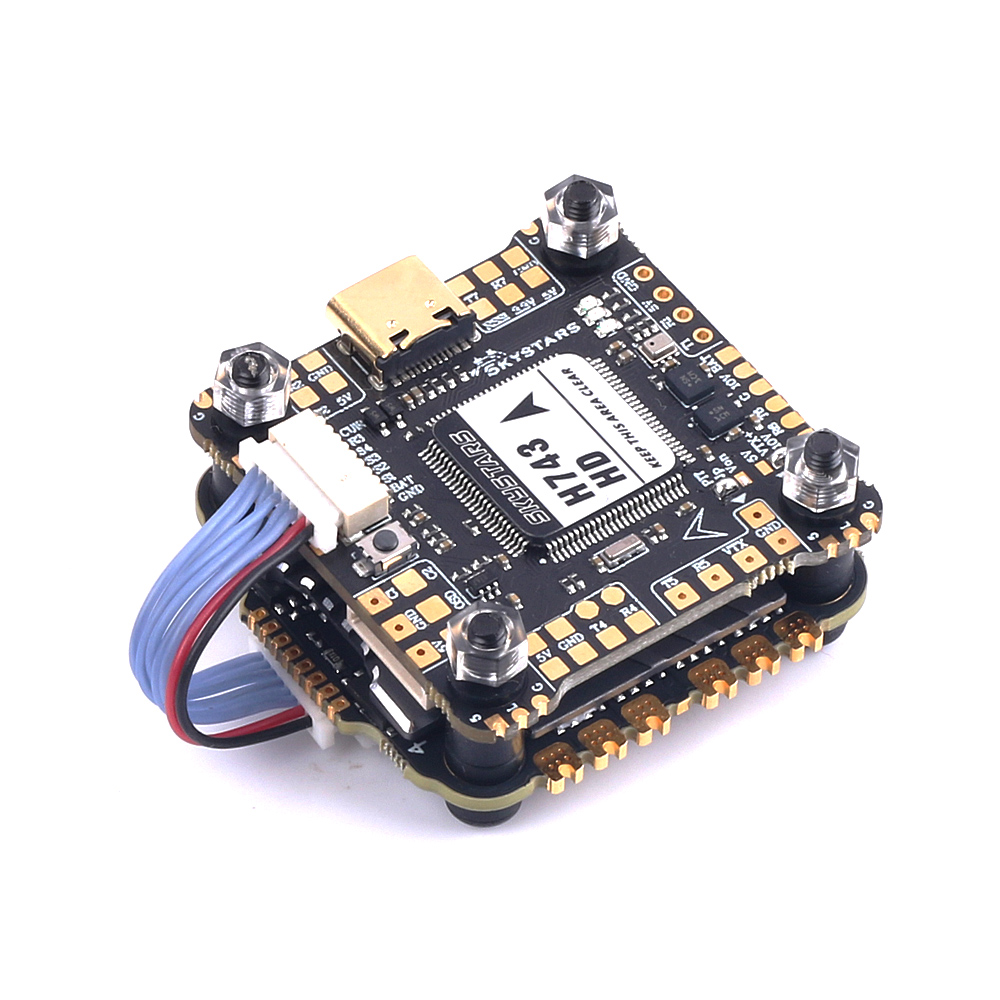

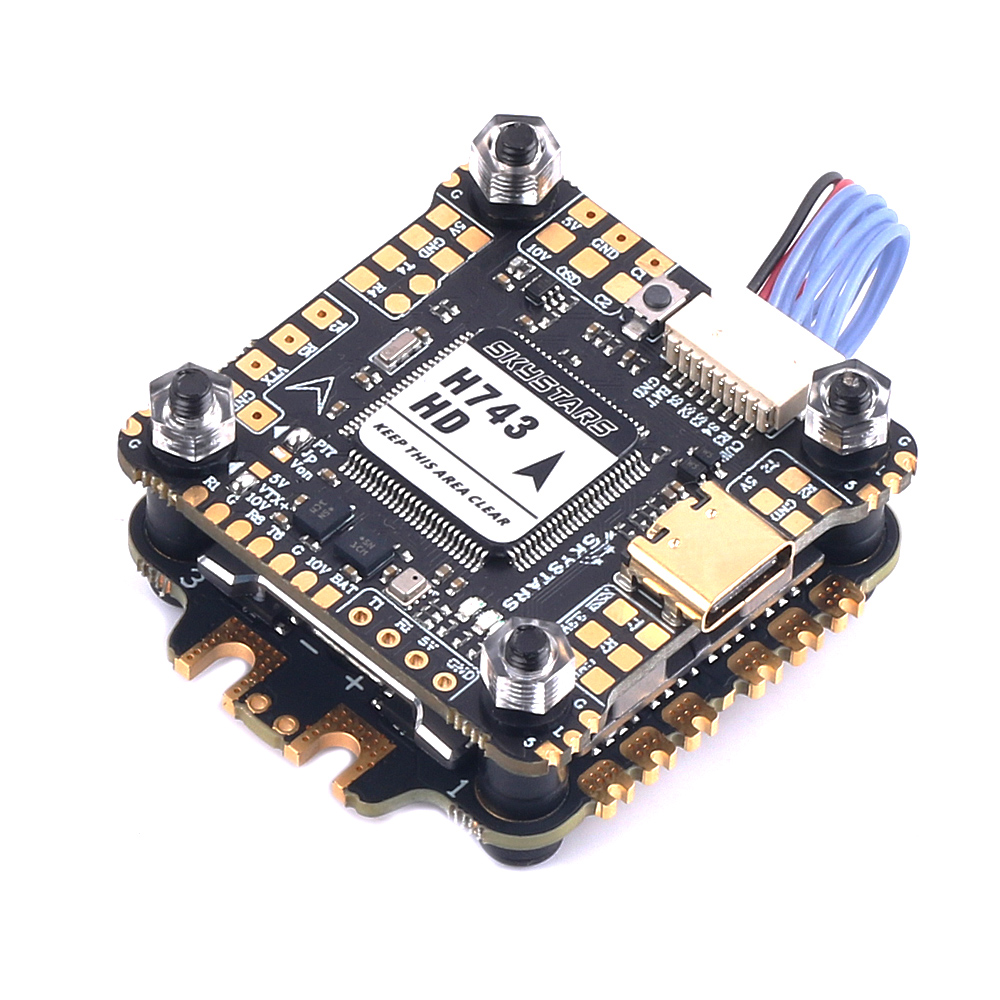

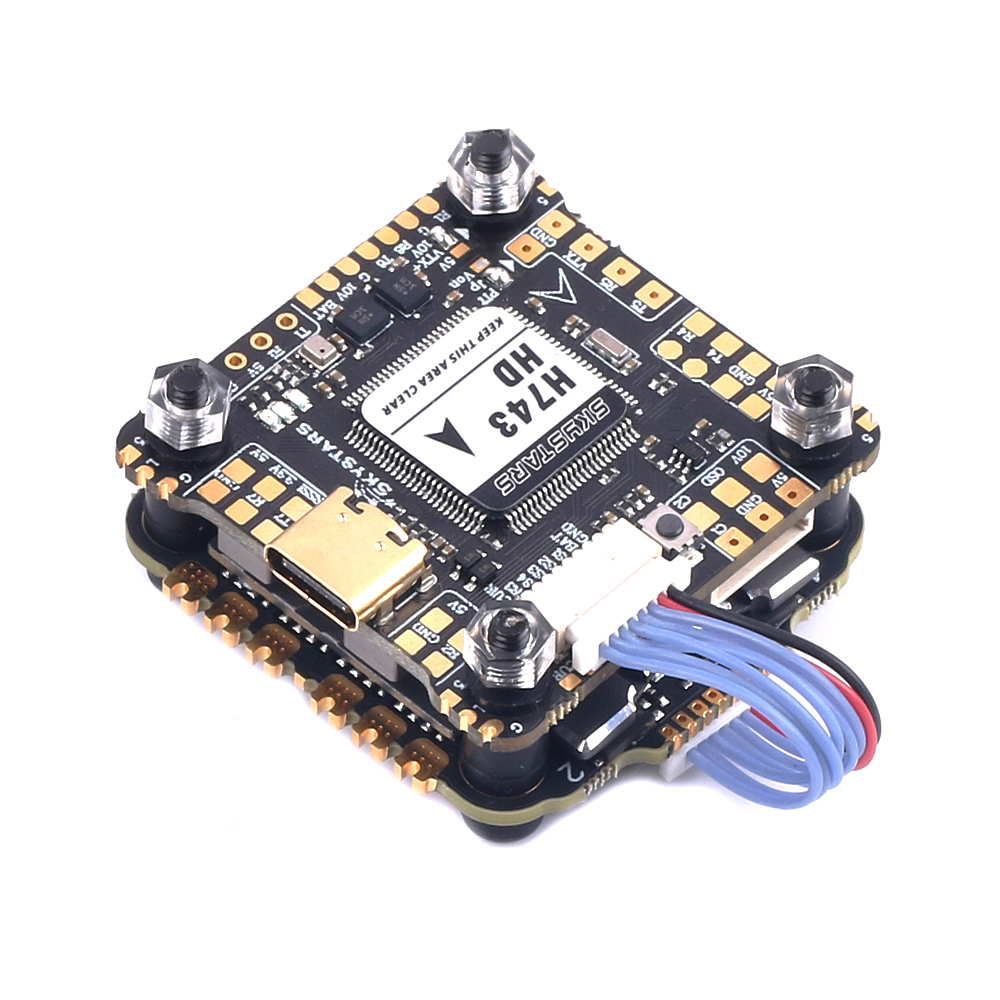

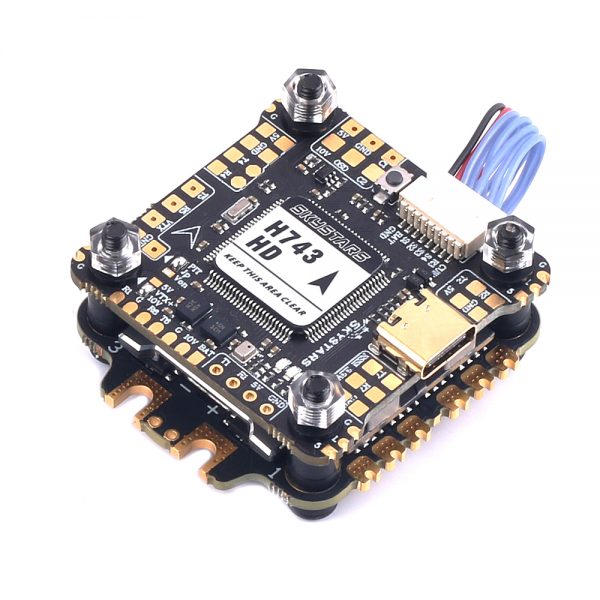

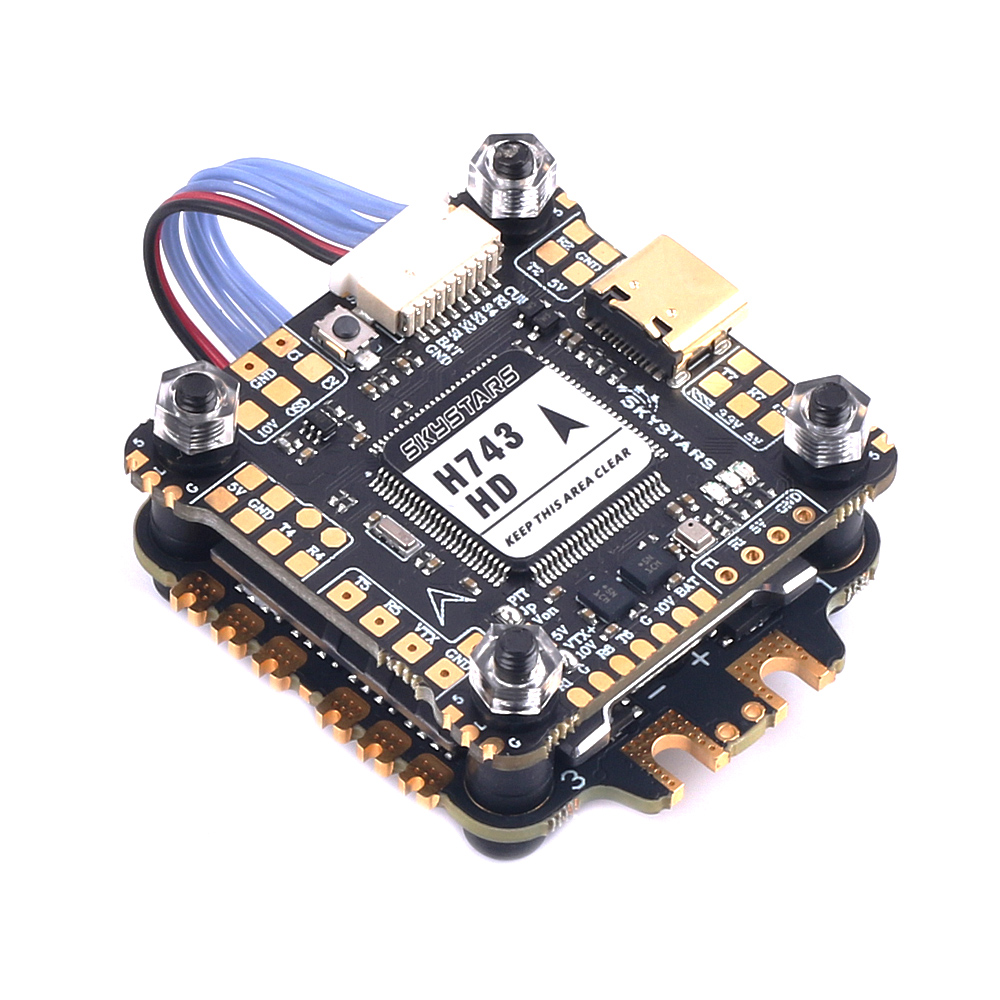

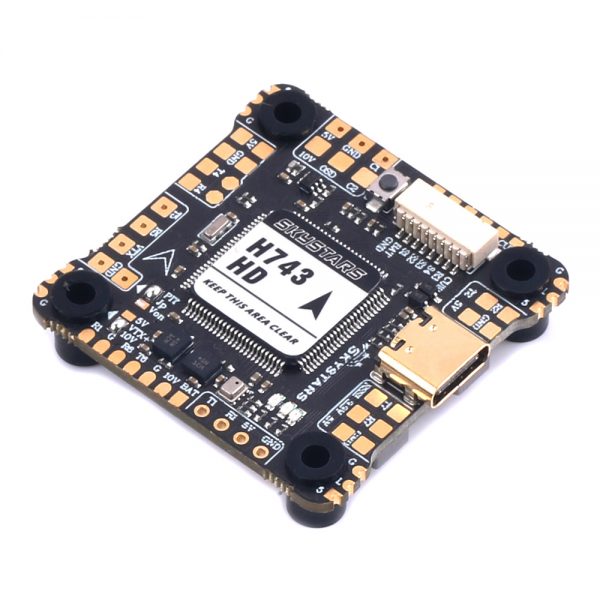

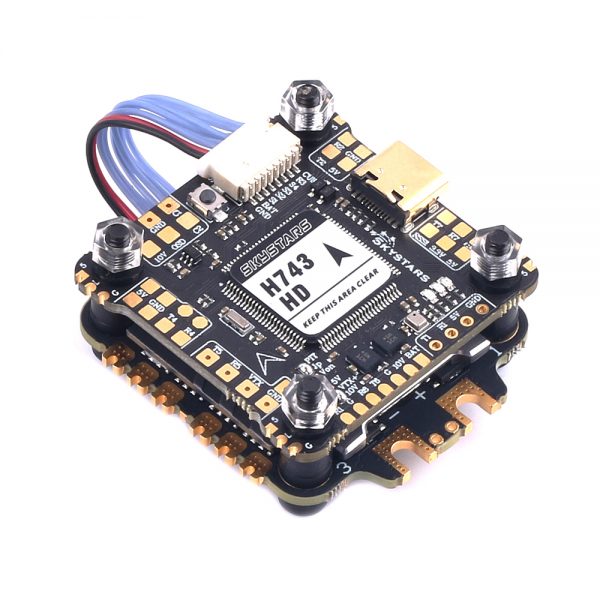

SKYSTARS H743 HD DualGyro Flight Controller H7 X8 With OSD & KM60 60A Blheli32 4IN1 ESC

$199.00

BMI270 DUAL
8x Uarts
USB Type-C(USB2.0)
VTX 10V/Vbat filtered power ON/OFF switch
DJI FPV OSD is supported by any spare UART

Categories: ,

SKYSTARS H743 HD DualGyro Flight Controller H7 X8 With OSD & KM60 60A Blheli32 4IN1 ESC

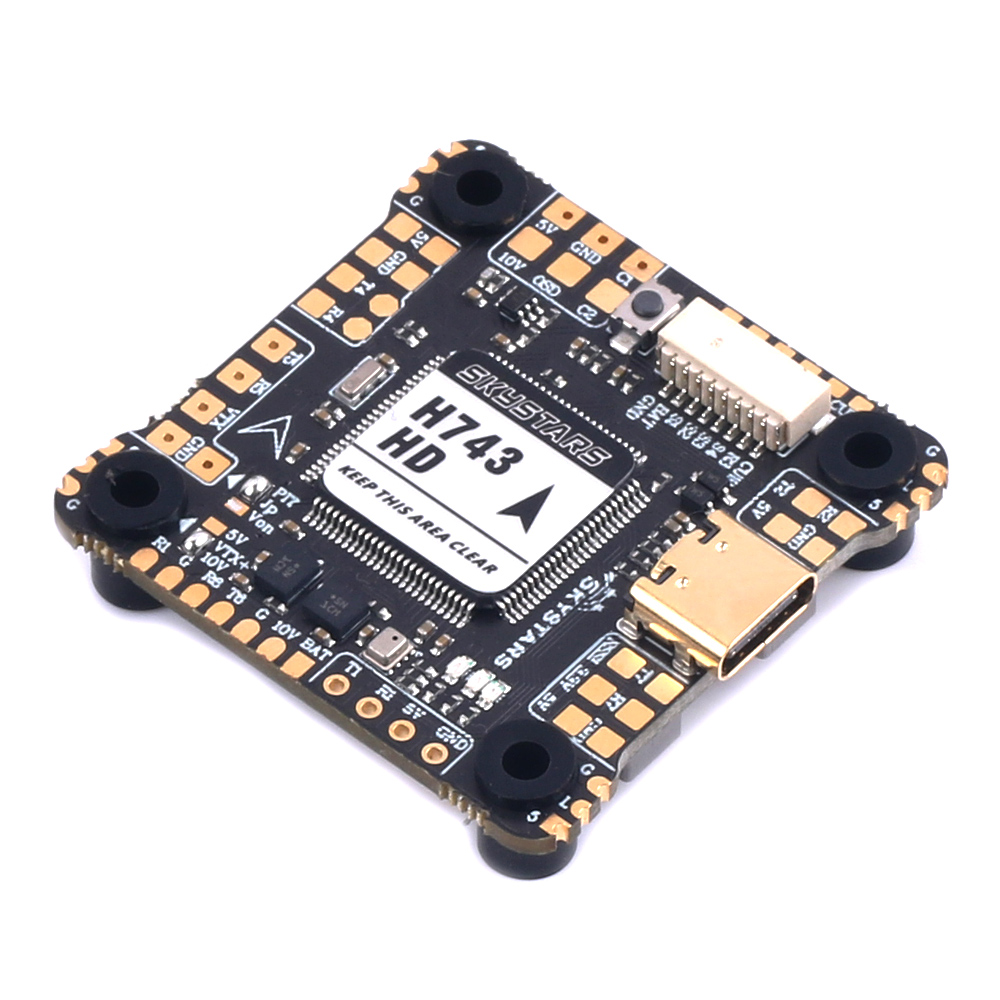

FC Specifications
MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
Gyro: BMI270 DUAL
Baro: BMP280
OSD: AT7456E
Blackbox: 16M
8x Uarts (1,2,3,4,6,7,8) with built-in inversion.
8x PWM outputs
1x I2C
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
USB Type-C(USB2.0)
2x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
Dual Camera Inputs switch
VTX 10V/Vbat filtered power ON/OFF switch
DJI FPV OSD is supported by any spare UART

Power
Vbat Input: 7~25V (2~6S LiPo)
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.250mA

FC Firmware
BetaFlight: SKYSTARSH7HD
Ardupilot : SKYSTARSH7HD

Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 39.5 x 39.5 x 7.8 mm
Weight: 10.1g

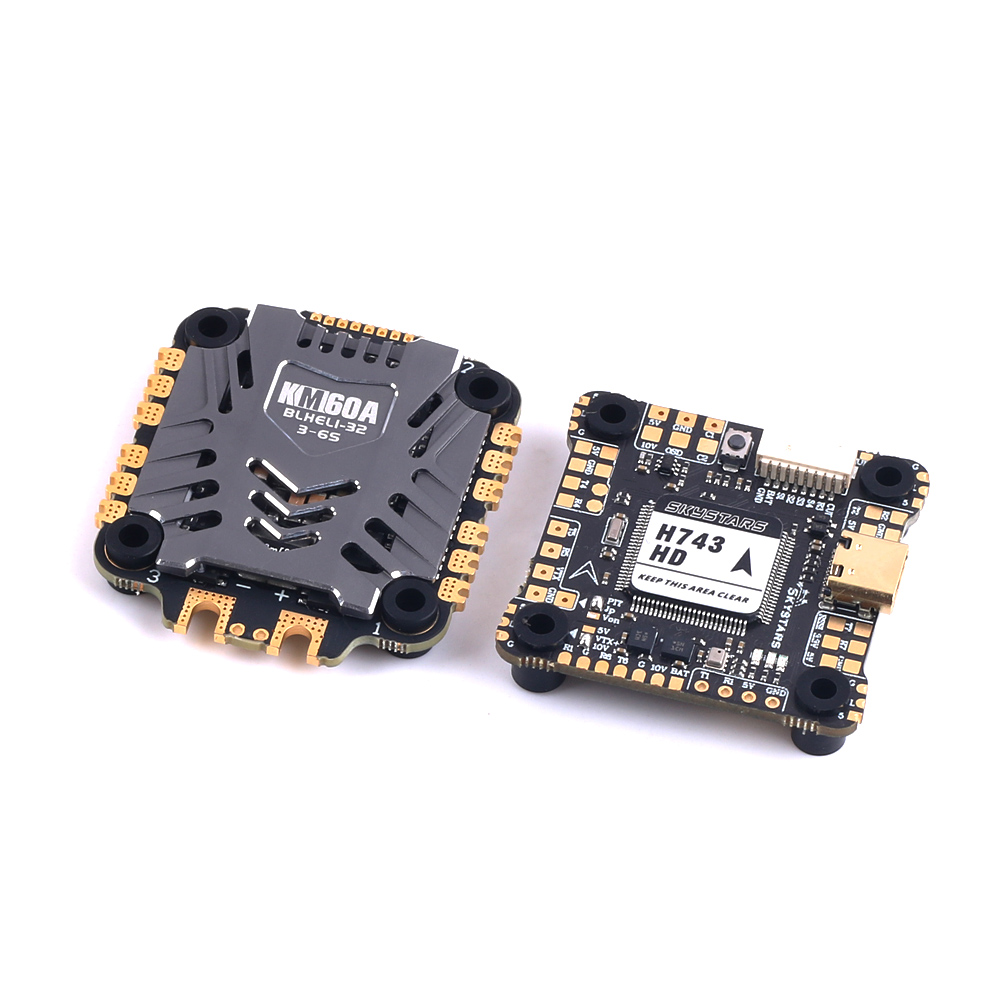

KM60 BL32-60A 4IN1 3-6S ESC BLheli32 DShot1200 4-in-1 ESC

Support Dshot1200, Dshot600, Dshot300, PWM control signal
Power supply voltage: 3-6S (12-26V)
Continuous working current: 60A
No built-in 5V BEC output
Firmware: BLHELI 32 ESC
Screw hole spacing: 30.5*30.5MM
Aperture: 4MM
Weight: 14.6g

Including

1x H7 HD DUAL Gyro
1x KM60 60A Blheli_32 4in1 ESC
8x Silicon grommets M4 to M3
2x JST-SH1.0_8pin cable, 4cm
1x JST-GH-6P cable for DJI port, 10cm
